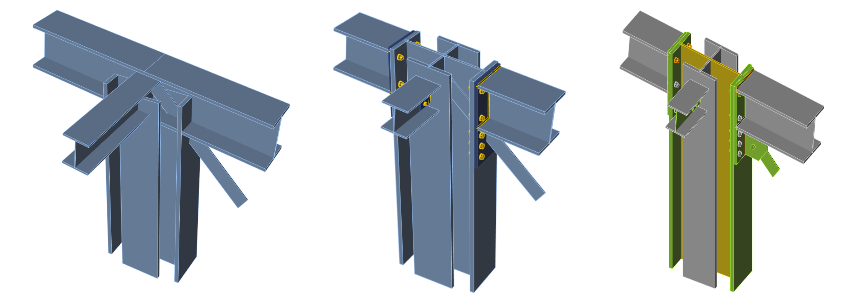

Structural design of a general 3D joint (EN)
1 New project

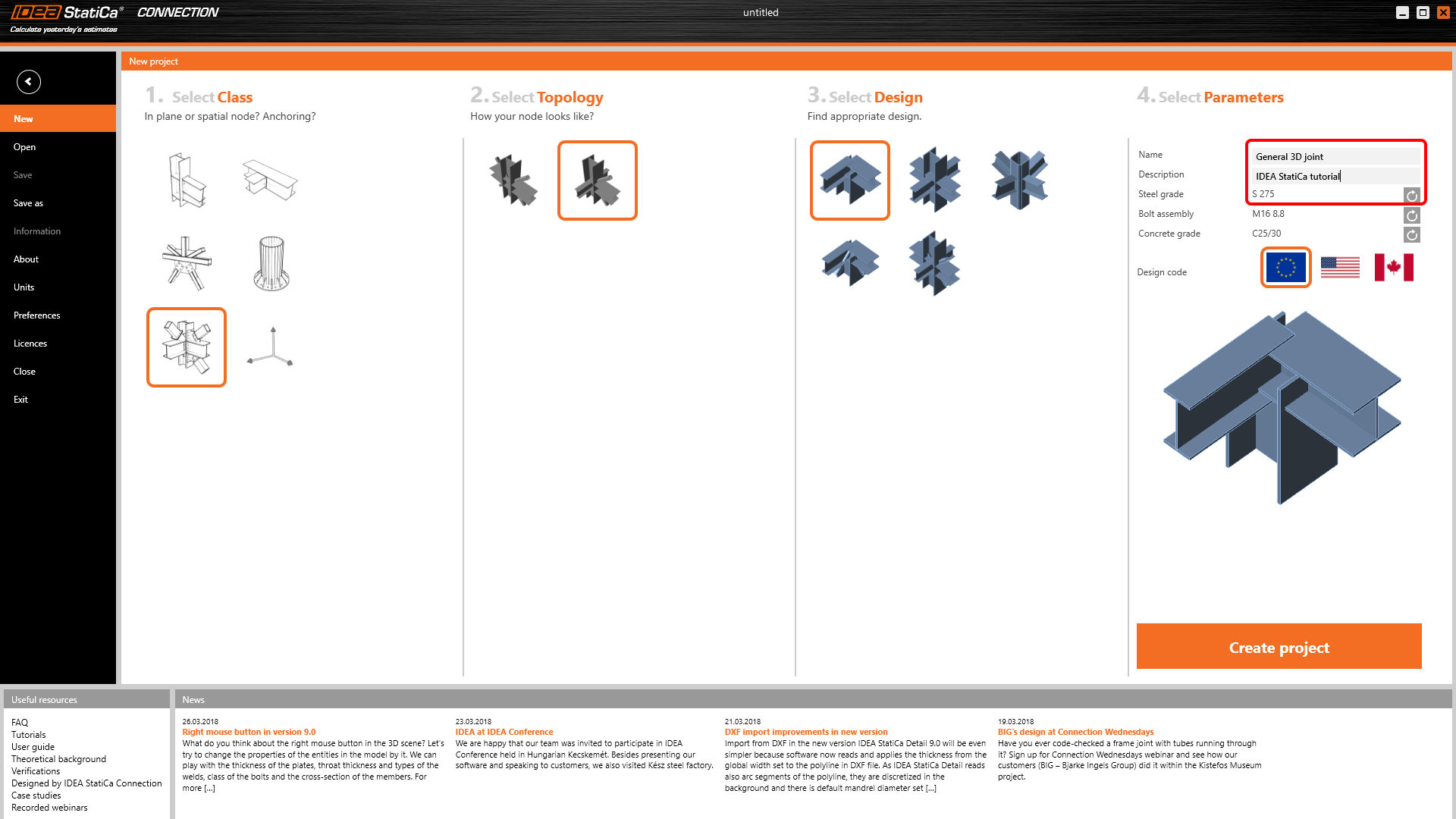

Start with launching the IDEA StatiCa Connection. Create a new project by selecting a starting template closest to the desired design, filling in the name, and choosing the design code and default material properties – S 275.
2 Geometry

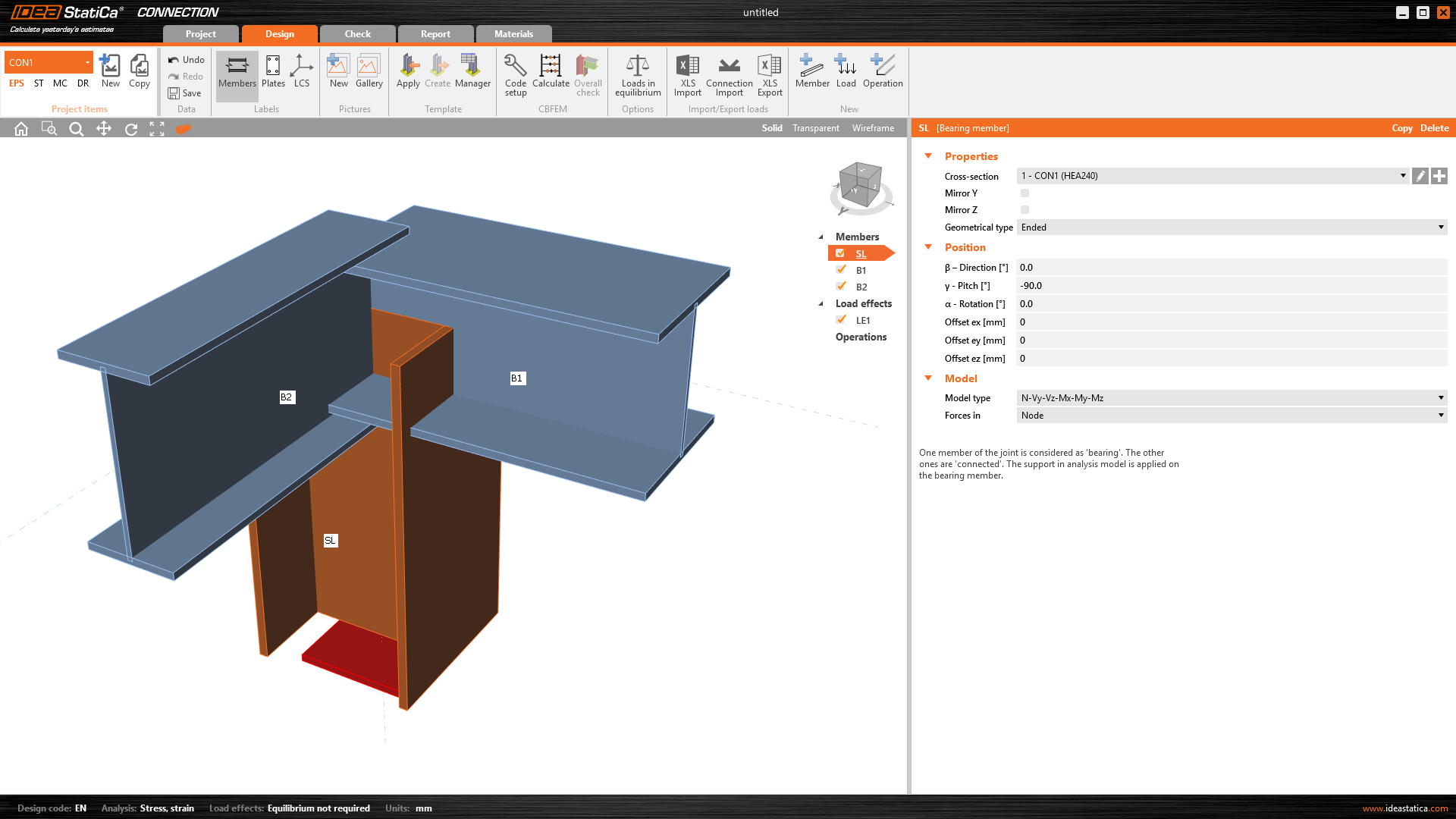

Three beams were automatically added.
Member SL

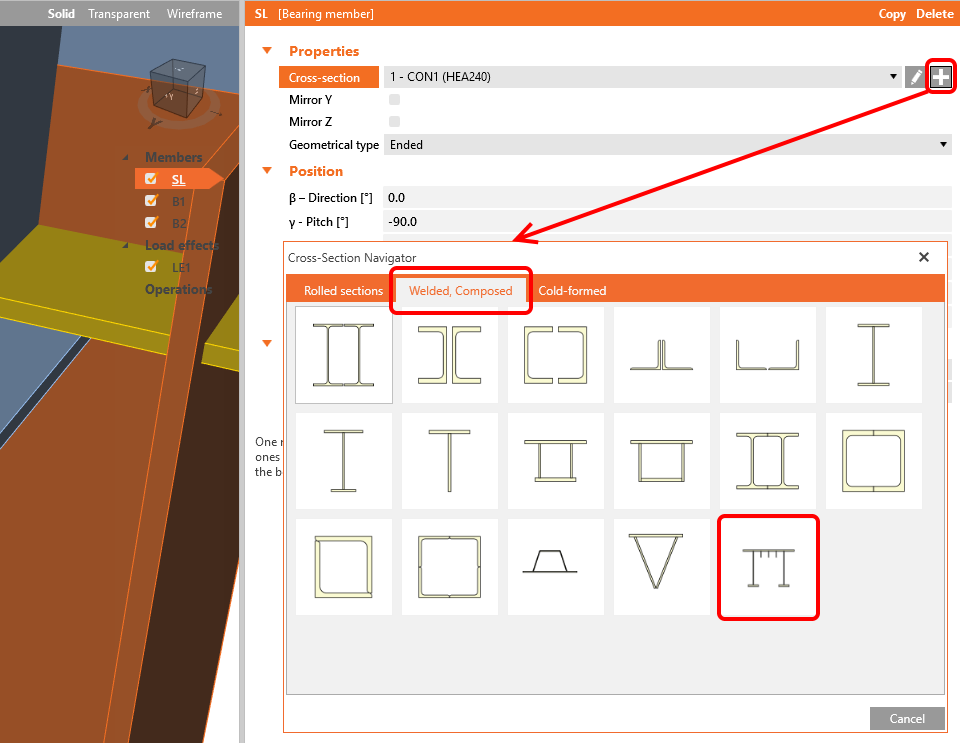

You will create a general cross-section for the column member. To do that, select Welded, Composed tab and click on General steel cross-section.

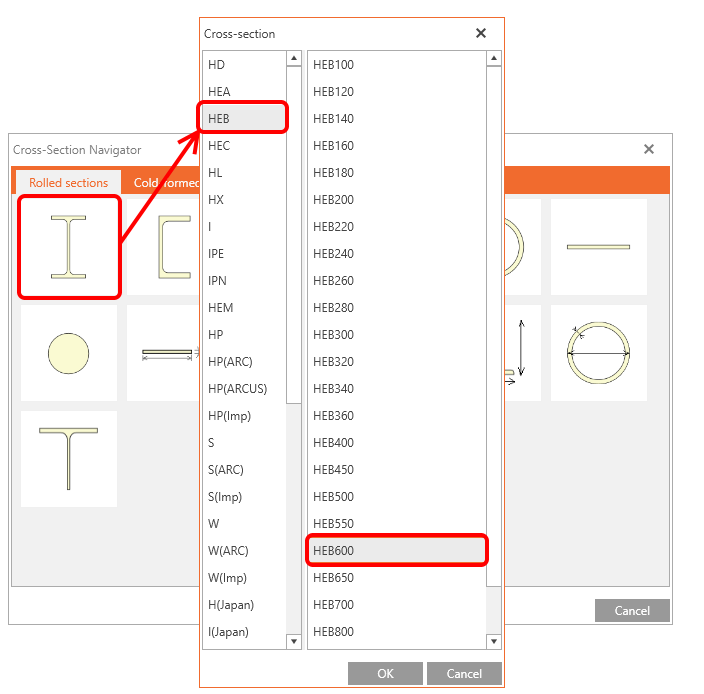

The General cross-section editor is opened, and you can start composing the cross-section by selecting the I sections in the Cross-section Navigator.

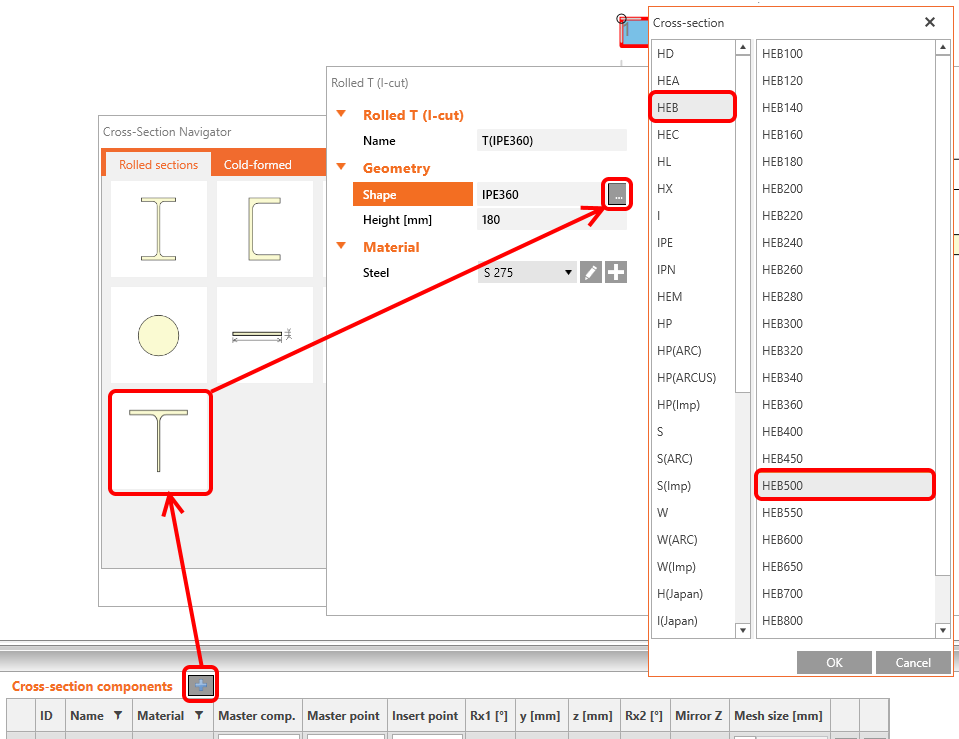

Then continue by clicking on the icon Add new entity and selecting the Sections T (I-cut). The Rolled T (I-cut) window is opened, and you can edit the shape.
Then make a copy of this entity by clicking the Copy icon in the upper ribbon.

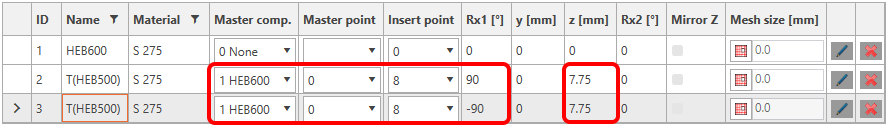

Next, move and rotate the added T-shaped entities to design the whole cross-section by editing values in the Cross-section components tab as in the figure below.
You have the final design of the cross-section for member SL.
For further information, see How to create and use custom cross-section in the IDEA StatiCa Resources website.
Member B1
Start with Right-click on the beam B1 and set the cross-section to HEB280 from the library.
You have to change the member B1 properties.
Member B2

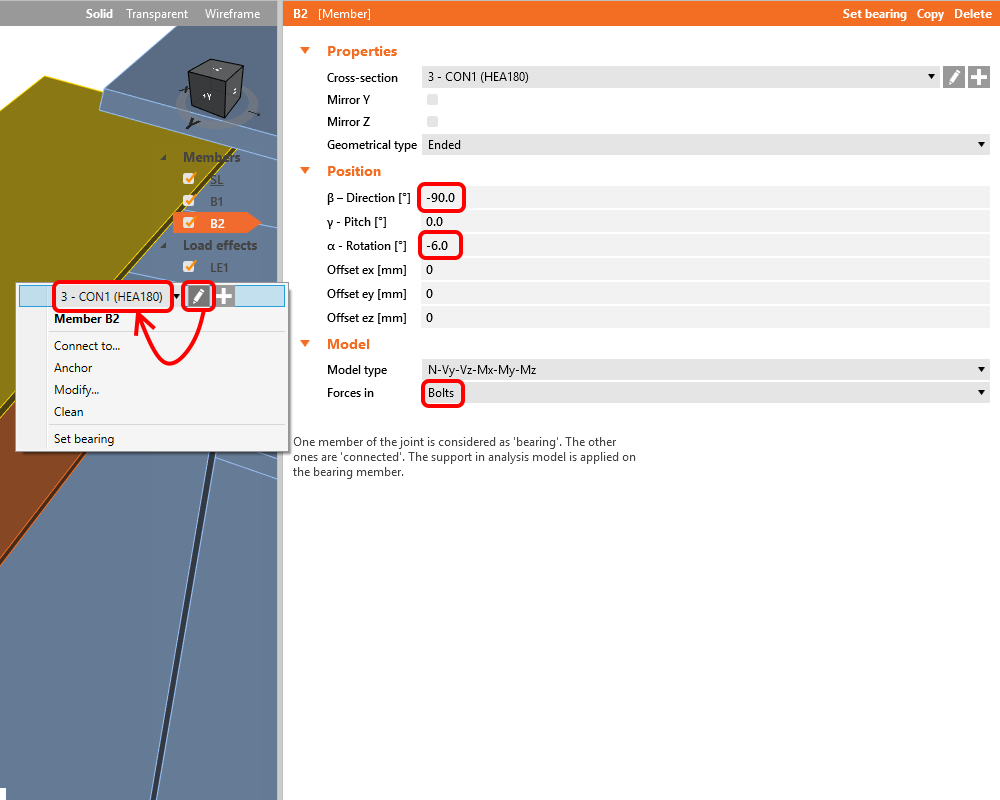

Set the cross-section to HEA180 on beam B2.
You can go on and change the member B2 properties.
For further information about the property "Forces in" see How to define load position in the IDEA StatiCa Resources website.
Member M4

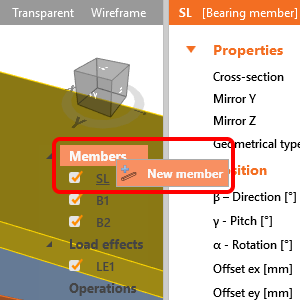

Click by the right mouse button at the Members row in the tree of entities in the 3D scene. Choose the New member command from the context menu.

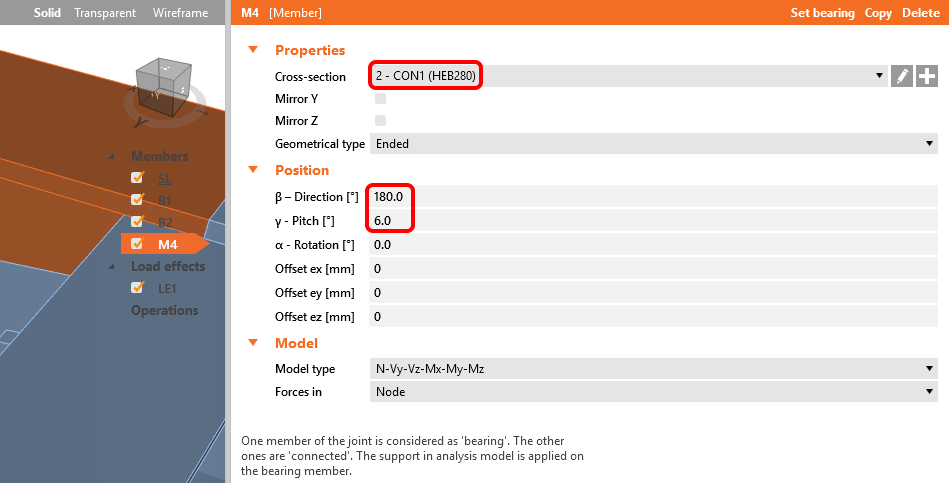

Continue and change the member M4 properties, follow the picture below.
Member M5

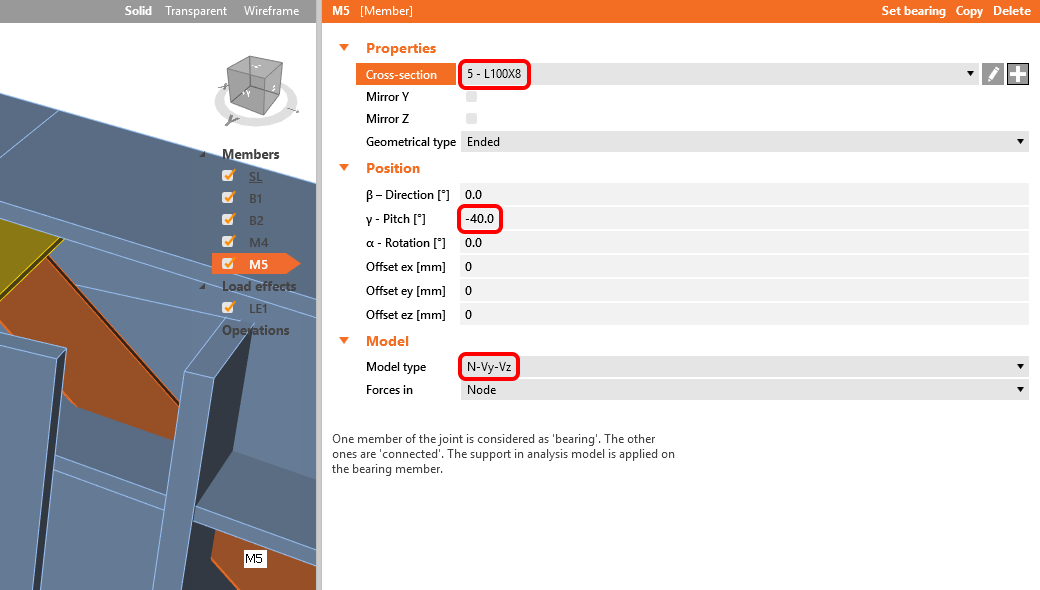

Add another member, set its cross-section to L100X8, and update properties.
You can check the final geometry of members.
3 Load effects

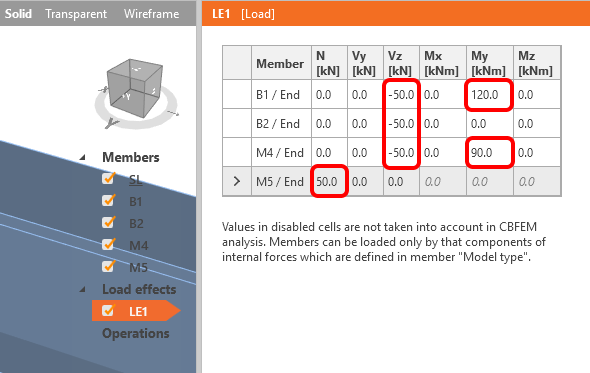

One load effect was automatically added. Input the values of internal forces into the chart. More load cases can be added.
4 Design

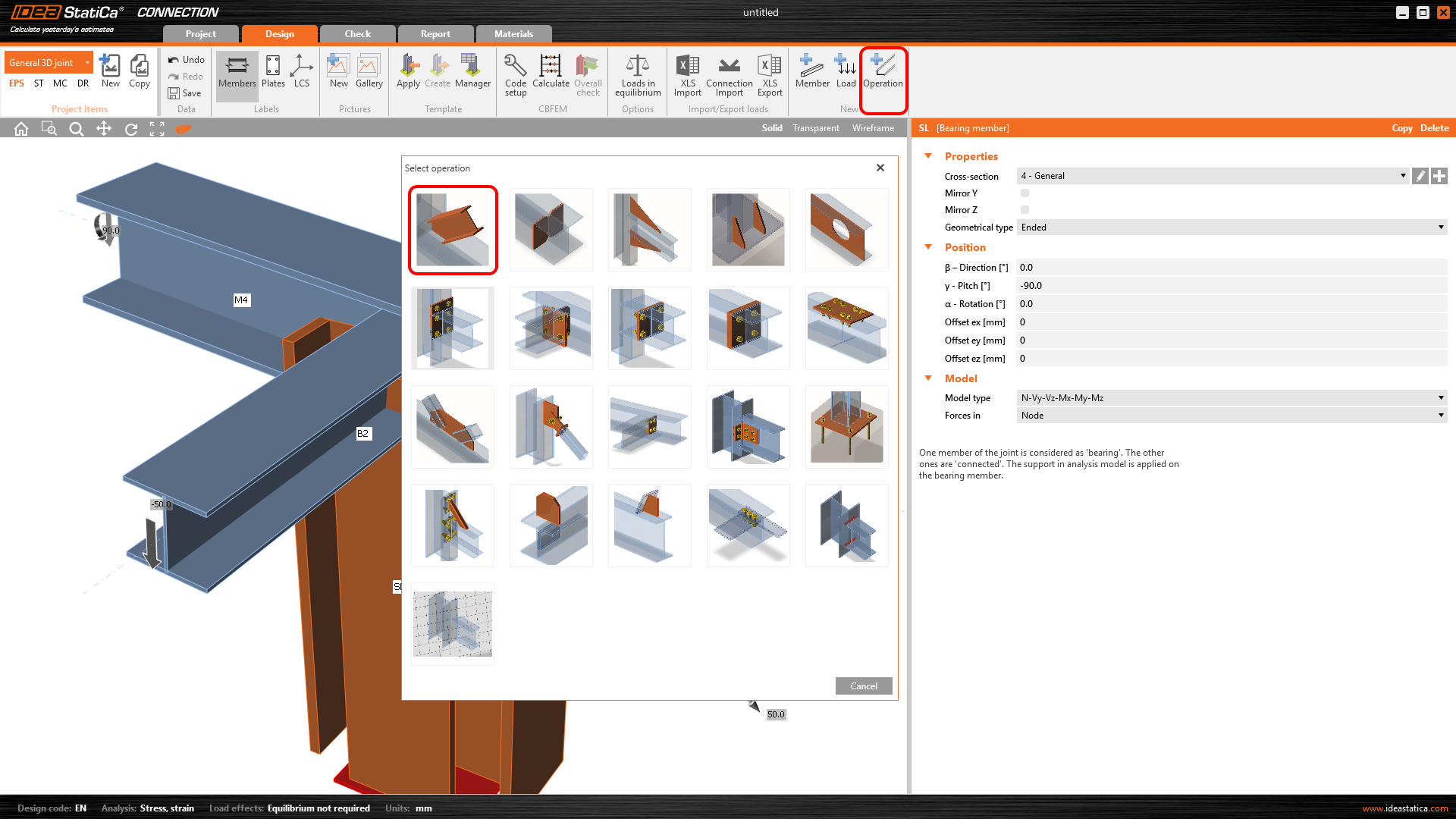

Add a new one by the command new Operation at the top ribbon. First, select the Cut of member operation to extend the column.

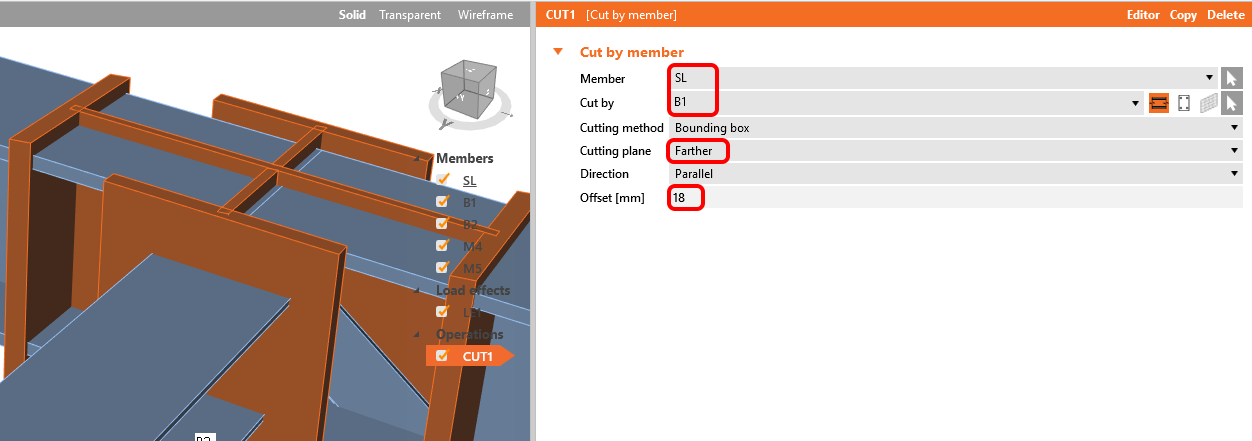

Now change the properties of the operation CUT1. Follow the picture below.

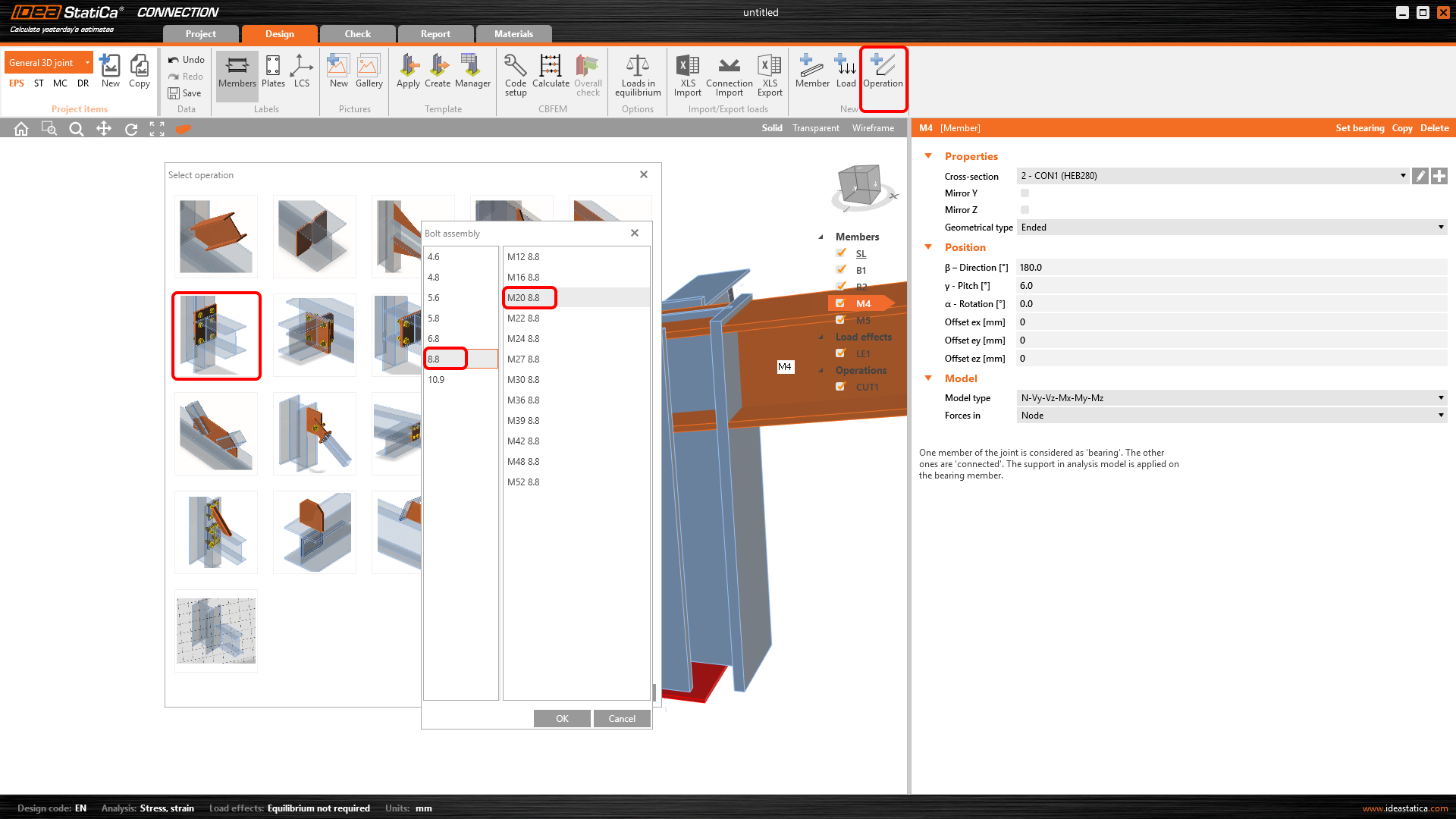

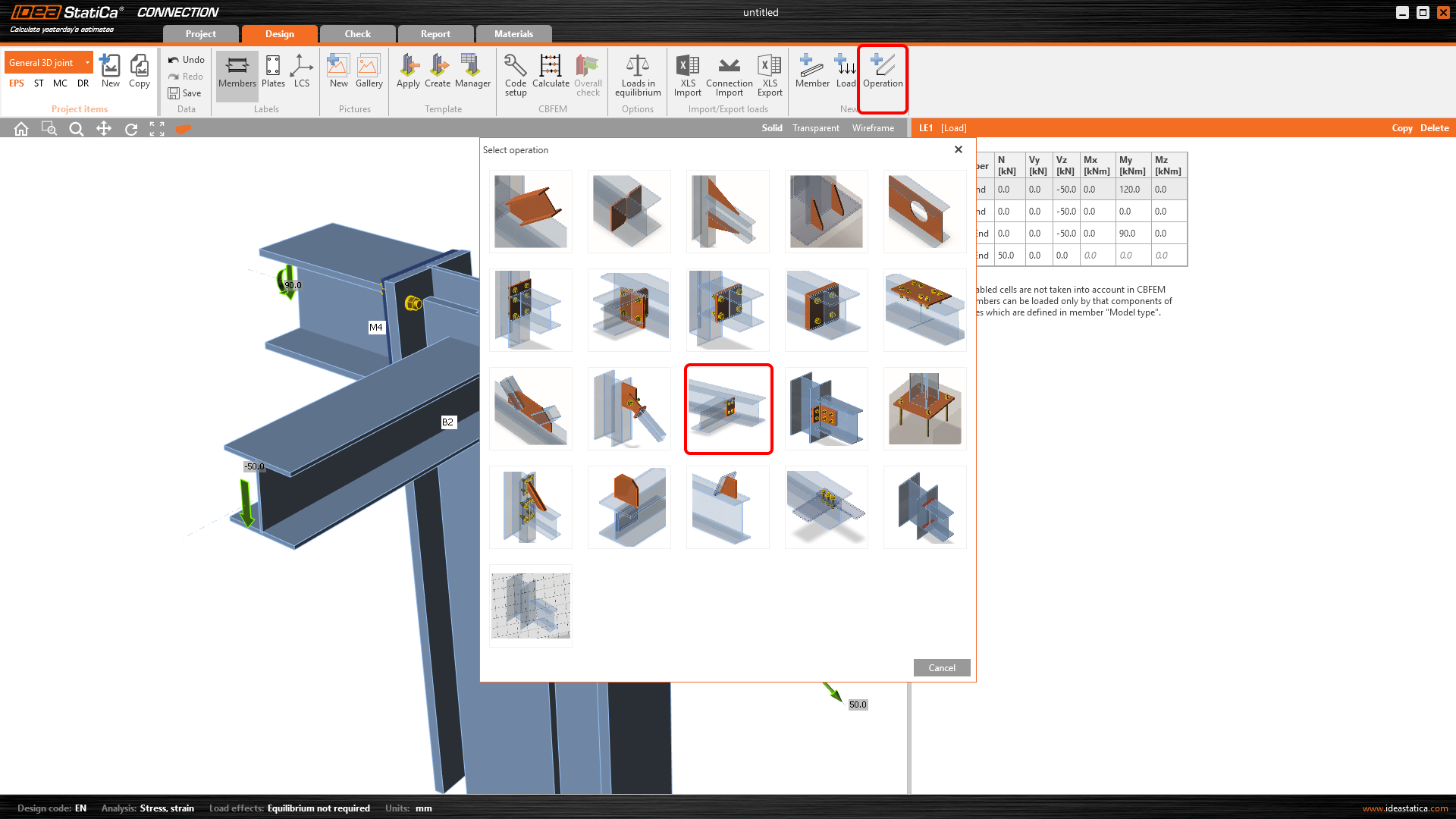

You can go on and add the next Manufacturing operation. Now, we select the End Plate and set desired bolts.

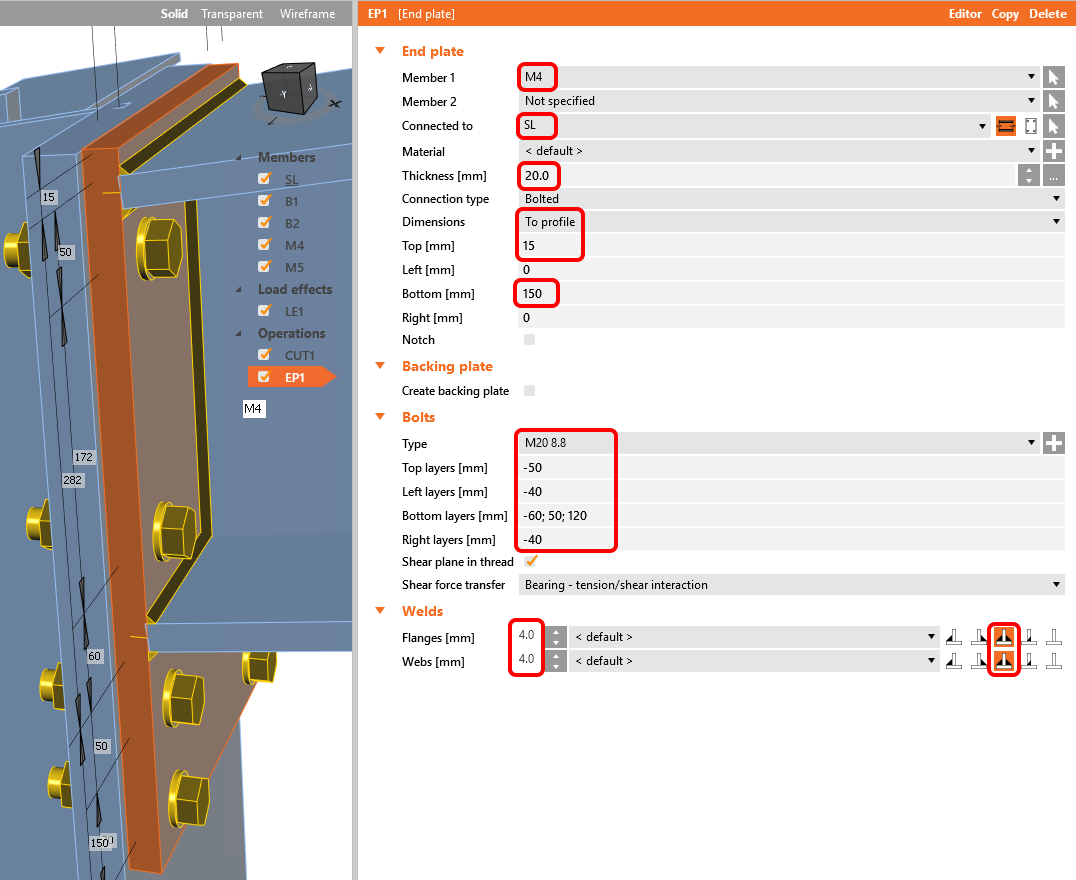

You can proceed and change the properties of the operation EP1. Follow the picture below.

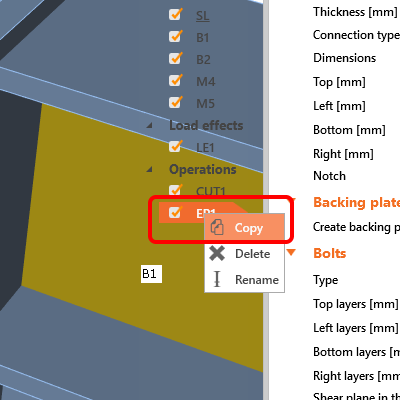

Copy operation EP1. With the right mouse button, click on the EP1 and choose Copy.
Now you have to set the correct properties of EP2.

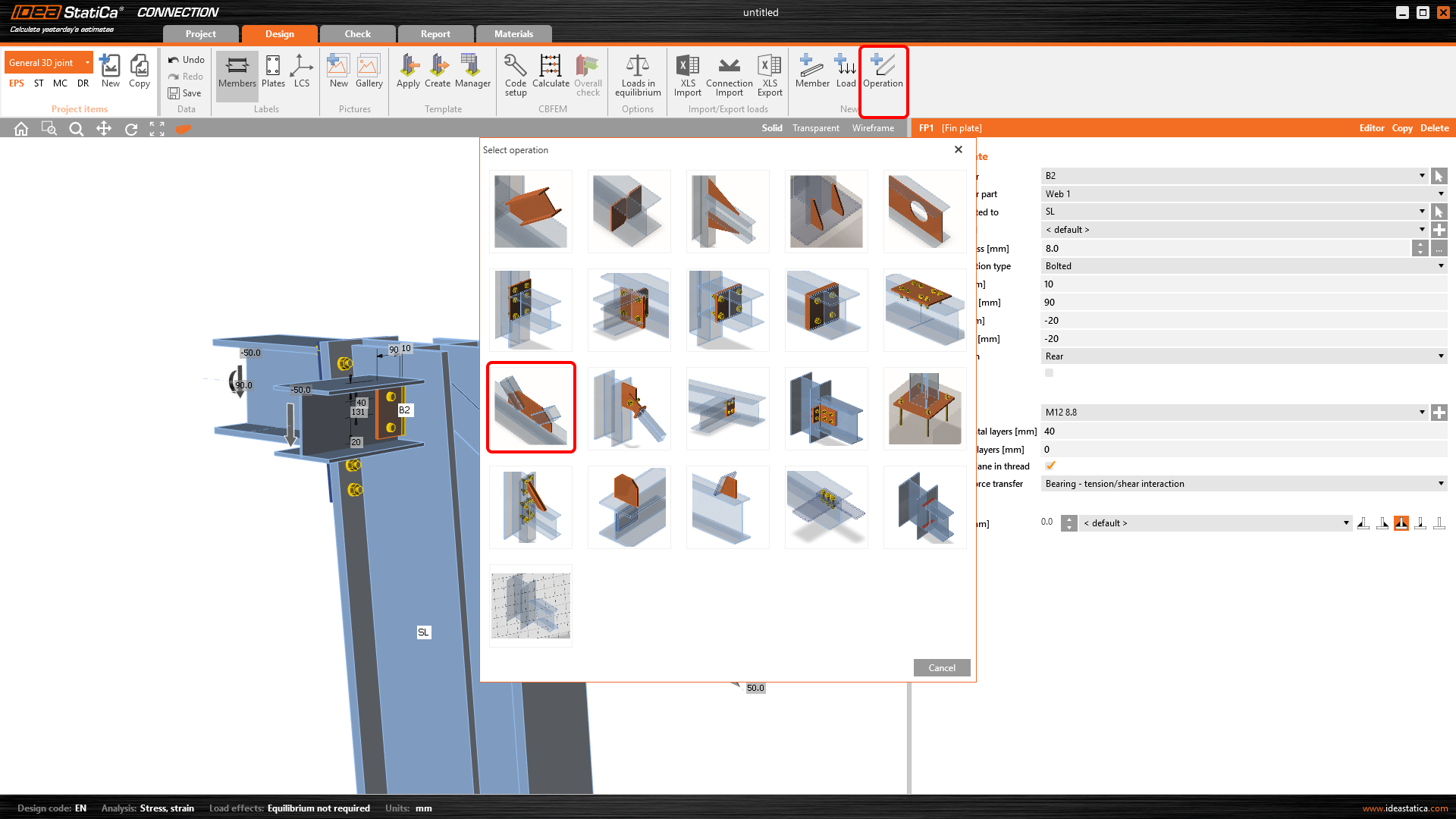

You can continue and input a Fin plate.
Change the properties of the operation FP1. Follow the picture below.
Finish the design by adding a Gusset plate operation.
And set the parameters for GUSS1.
Finally, edit the gusset plate shape. With the right mouse button, click on plate GUSS1 in the 3D scene and choose Editor.

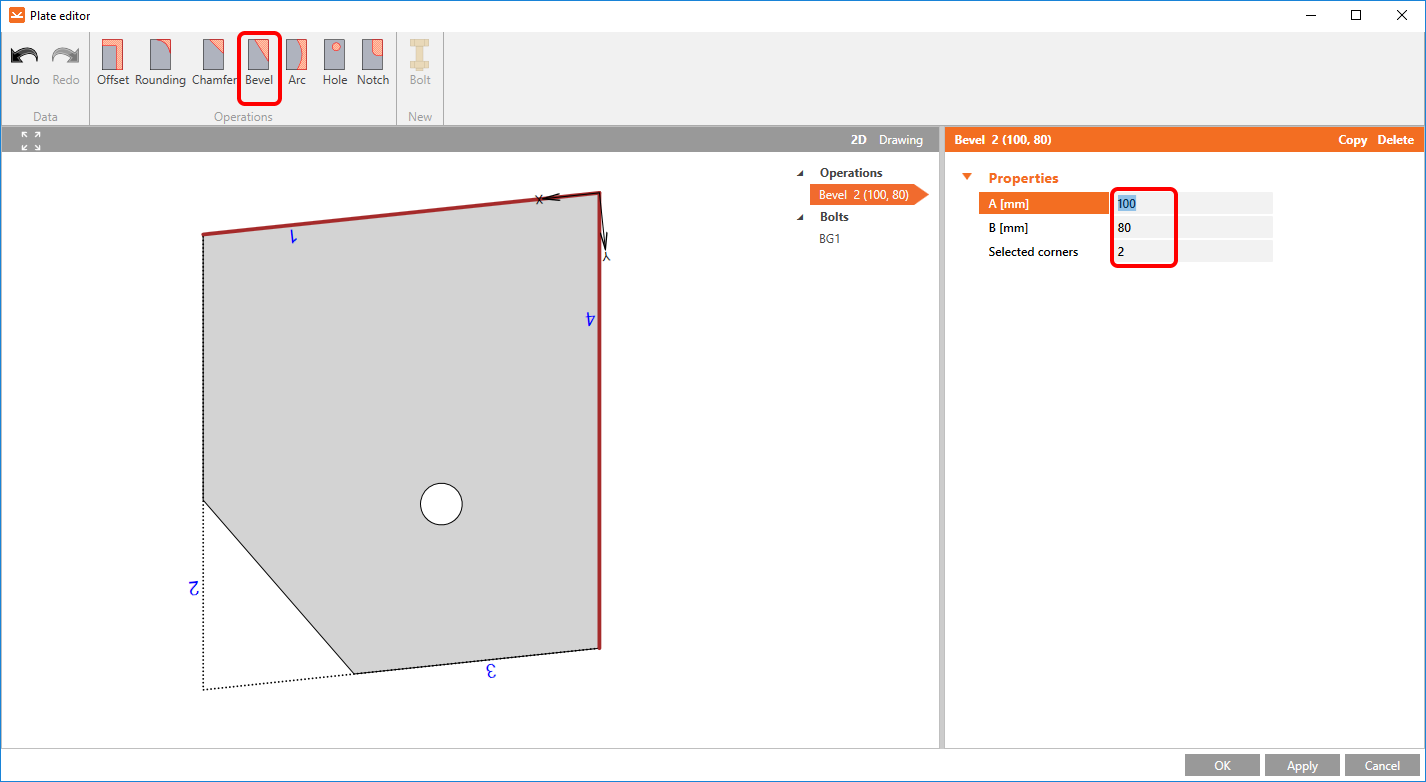

Modify the gusset plate by the input of a Bevel.

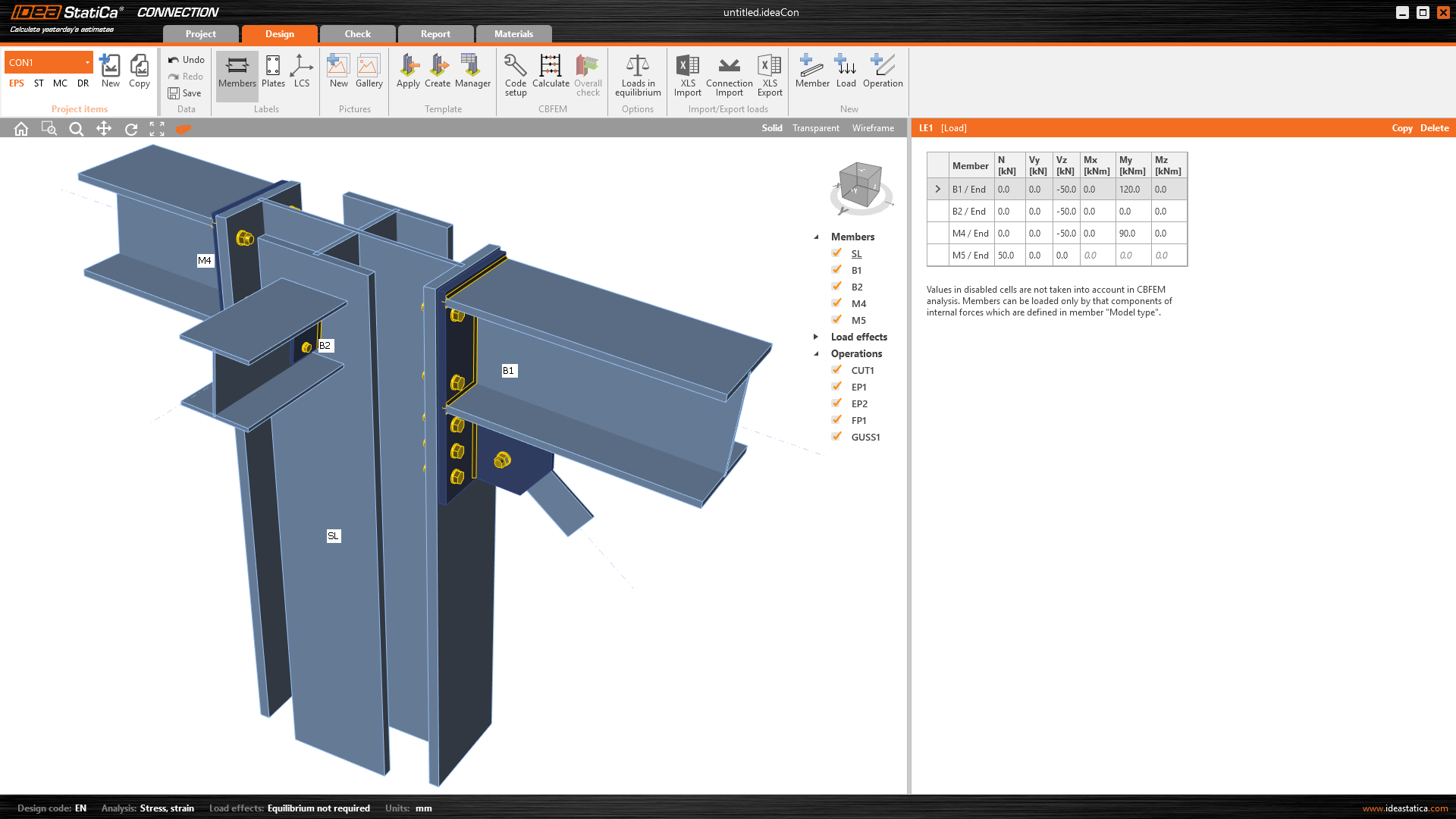

Let’s check the final design of the joint.
5 Calculation and Check

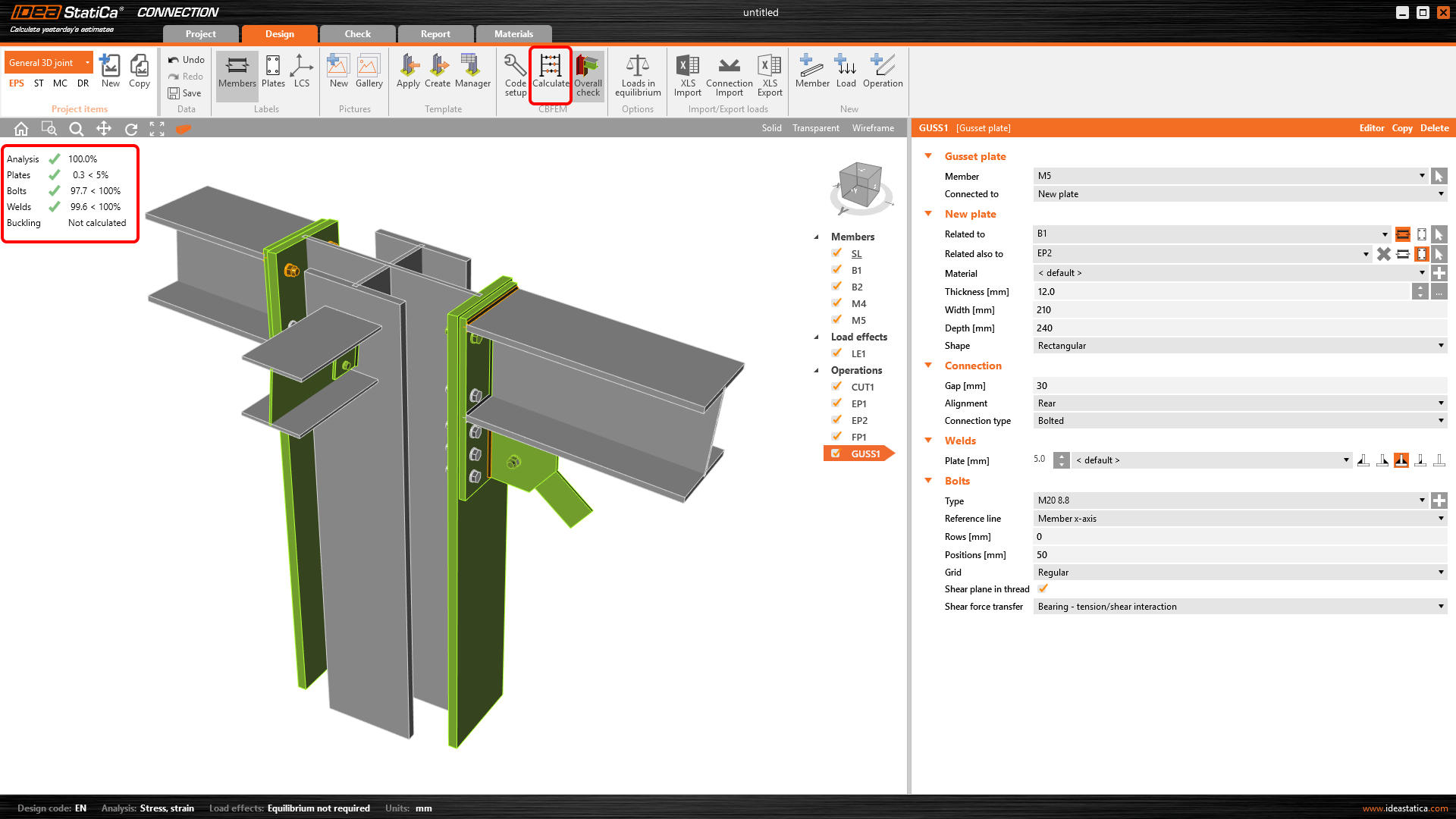

You can start the analysis based on CBFEM by clicking Calculate in the ribbon. The analysis model is automatically generated, the calculation is performed, and we can see the Overall check displayed together with basic values of check results.

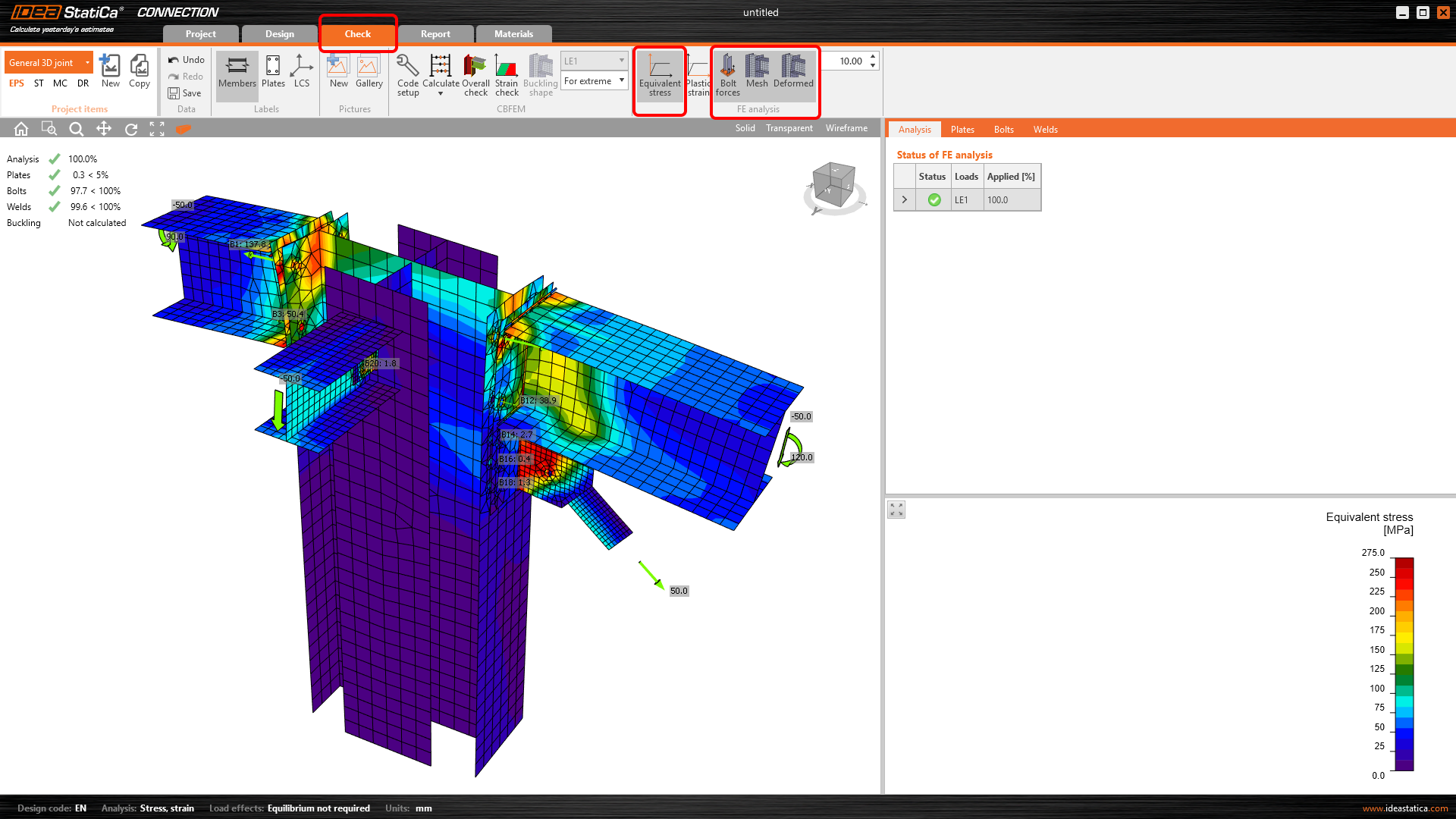

Go to the display tab Check, and activate Equivalent stress, Bolt forces, Mesh and Deformed from the ribbon to get a full picture of what is happening in the joint.
6 Report

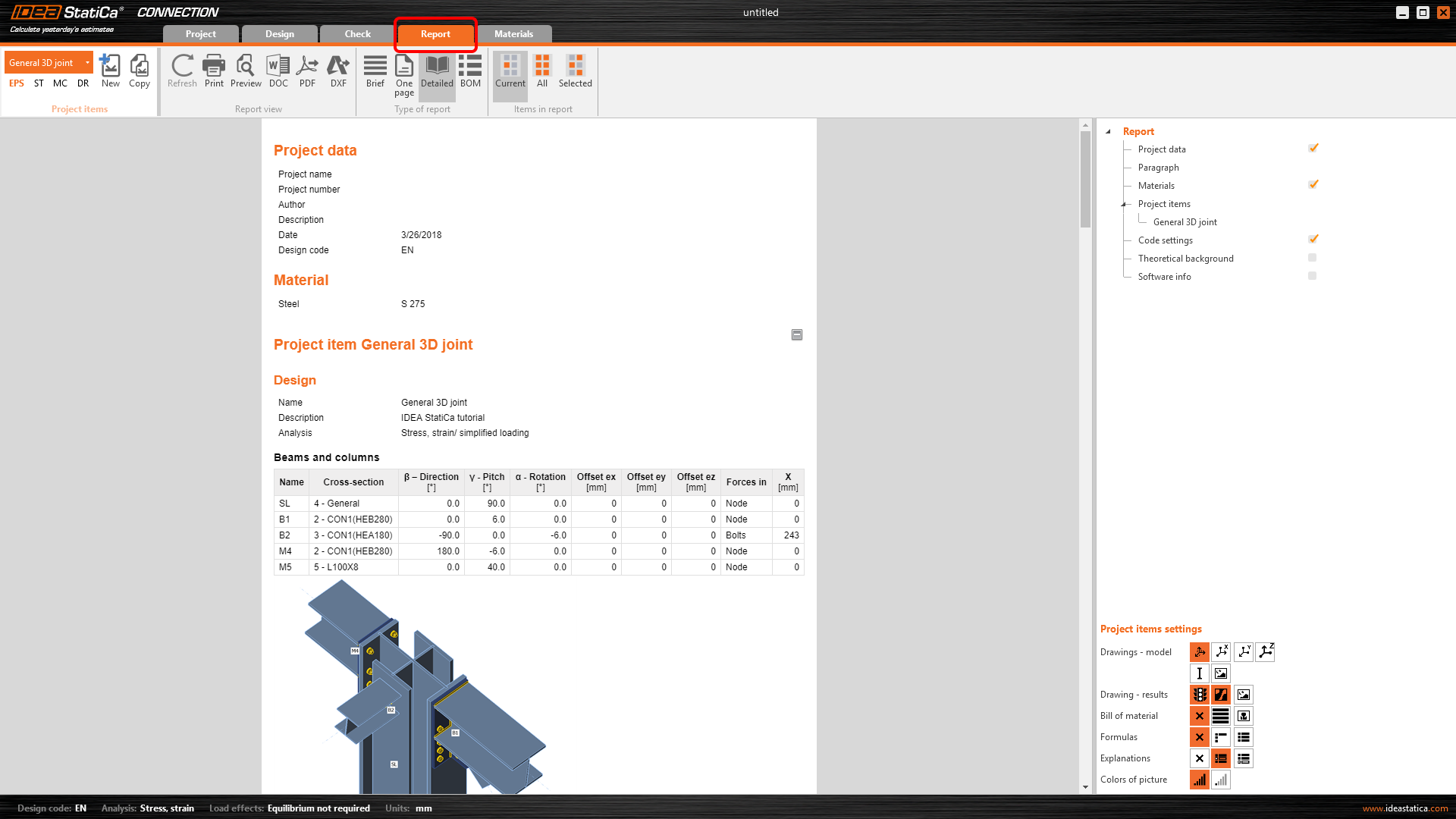

At last, go to the tab Report. IDEA StatiCa offers a fully customizable report to print out or save in an editable format.
You have designed, optimized, and code-checked a General 3D joint according to Eurocode.
