The I-beams are connected to each other by splices bolted upon beam flanges. The beams are loaded by tensile axial force. Bolt are loaded mainly in shear.
SteelConnection designVerificationsAISC (USA)Bolts

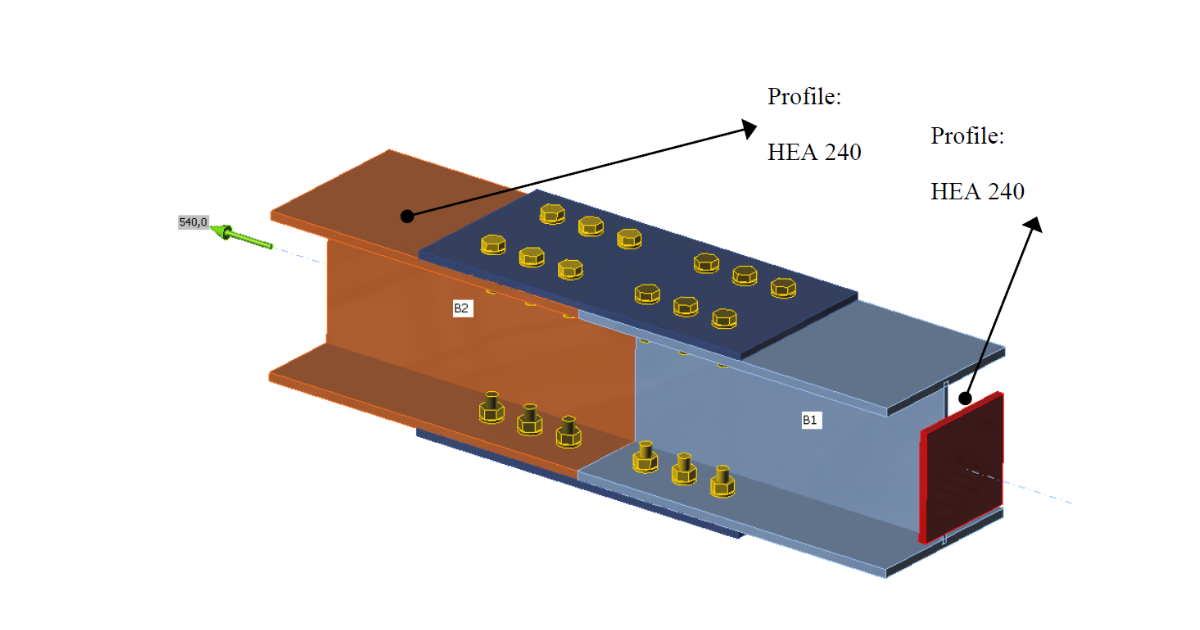

Splice connections of I-beam flanges (AISC)
This article is also available in
In the attached verification example, a splice connection of I-beam flanges is being designed and investigated according to AISC 360-10.
