Structural design of a steel beam (EN)

Questo articolo è disponibile in:
Learn how to use IDEA StatiCa Member to design and code-check a simply supported steel beam.

Come attivare il collegamento

IDEA StatiCa integra i collegamenti BIM nelle soluzioni FEA/BIM durante la sua installazione. È possibile controllare lo stato e attivare altri collegamenti BIM per i software installati successivamente nel programma di installazione dei collegamenti BIM.

Si noti che alcune soluzioni FEA richiedono ulteriori passaggi per attivare completamente il loro collegamento BIM a IDEA StatiCa.

Apri IDEA StatiCa e naviga nella scheda BIM. Clicca su Attiva il tuo collegamento BIM... (Activate your BIM link...).

Potrebbe apparire la notifica "Vuoi consentire a questa applicazione di apportare modifiche al tuo dispositivo?"; in tal caso, confermare con il pulsante .

Installare il collegamento BIM per il software selezionato (se trovato). La schermata indica anche lo stato di altri collegamenti BIM eventualmente già installati (Intalled).

New project

Start by launching IDEA StatiCa and select the application Member (download the newest version).

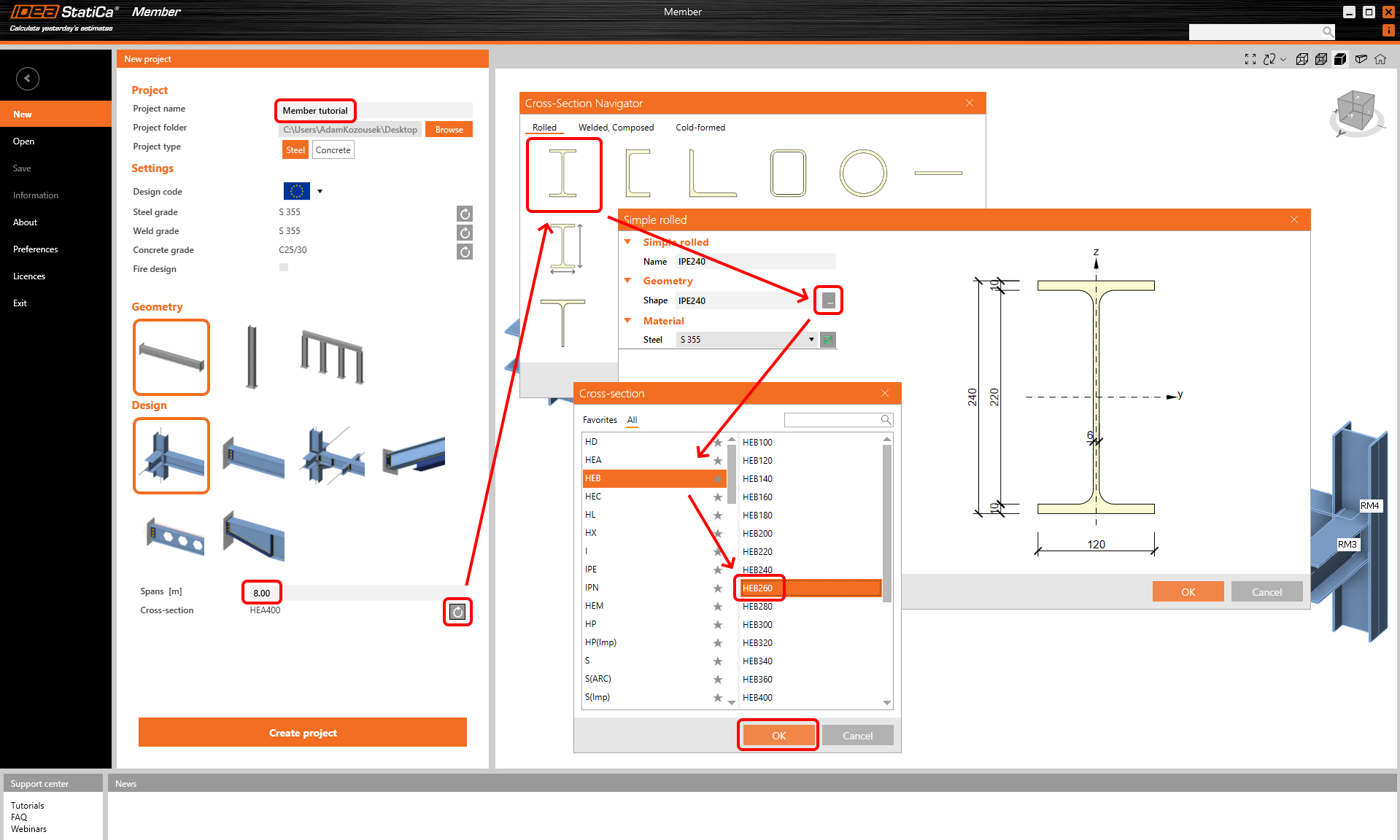

Create a new project - fill in the name, set the span 8.0 m, select the cross-section HEB 260 for the beam, and click Create project.

Analyzed member

In this example, you have only one analyzed member AM1, which was created at the same time as the project.

Related members

Four related members were created automatically by the project.  However, we only need to keep the two columns the remaining two framing beams can be deleted to finalize the arrangement.

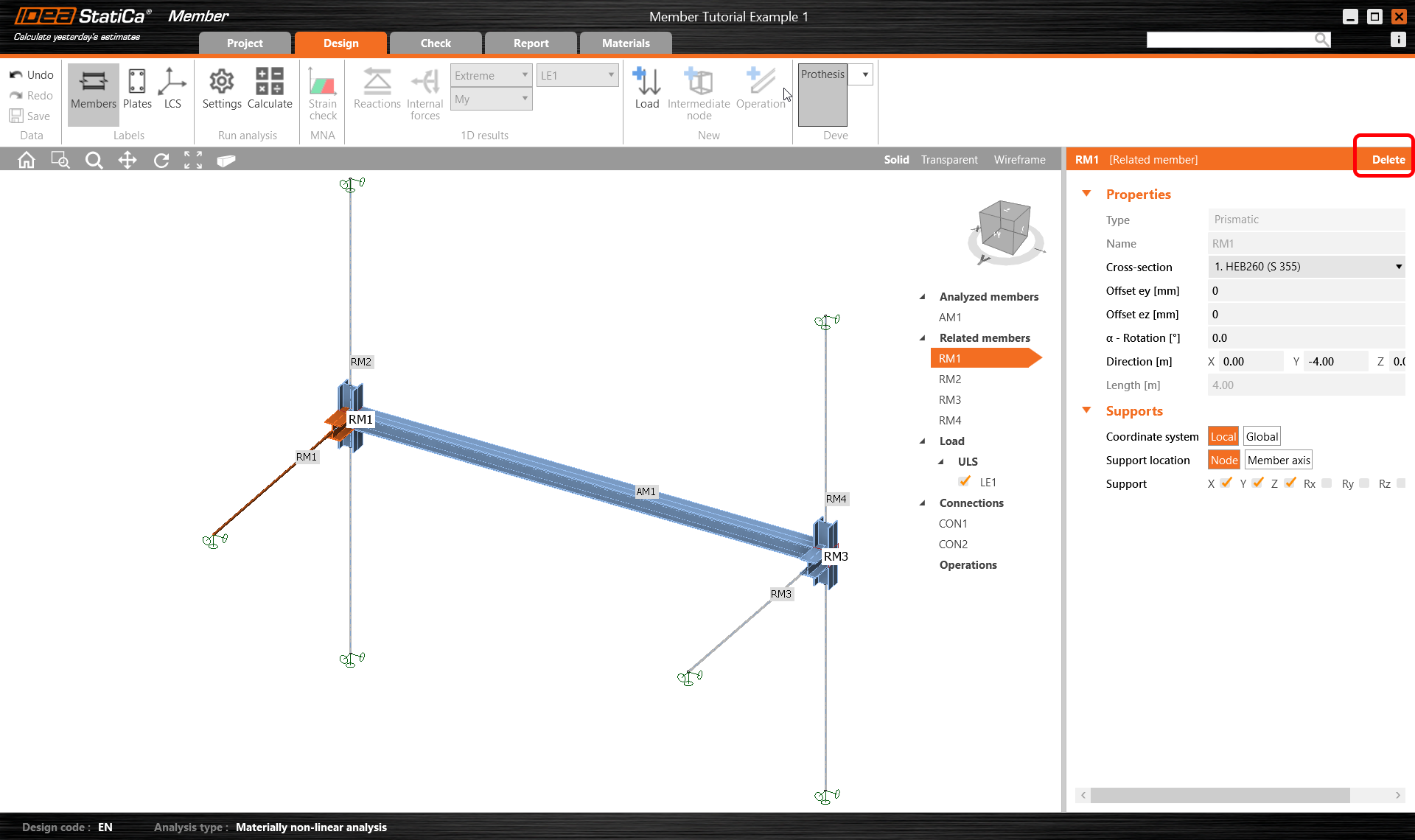

Highlight RM1 and RM3 and press Delete to remove them.

Loads

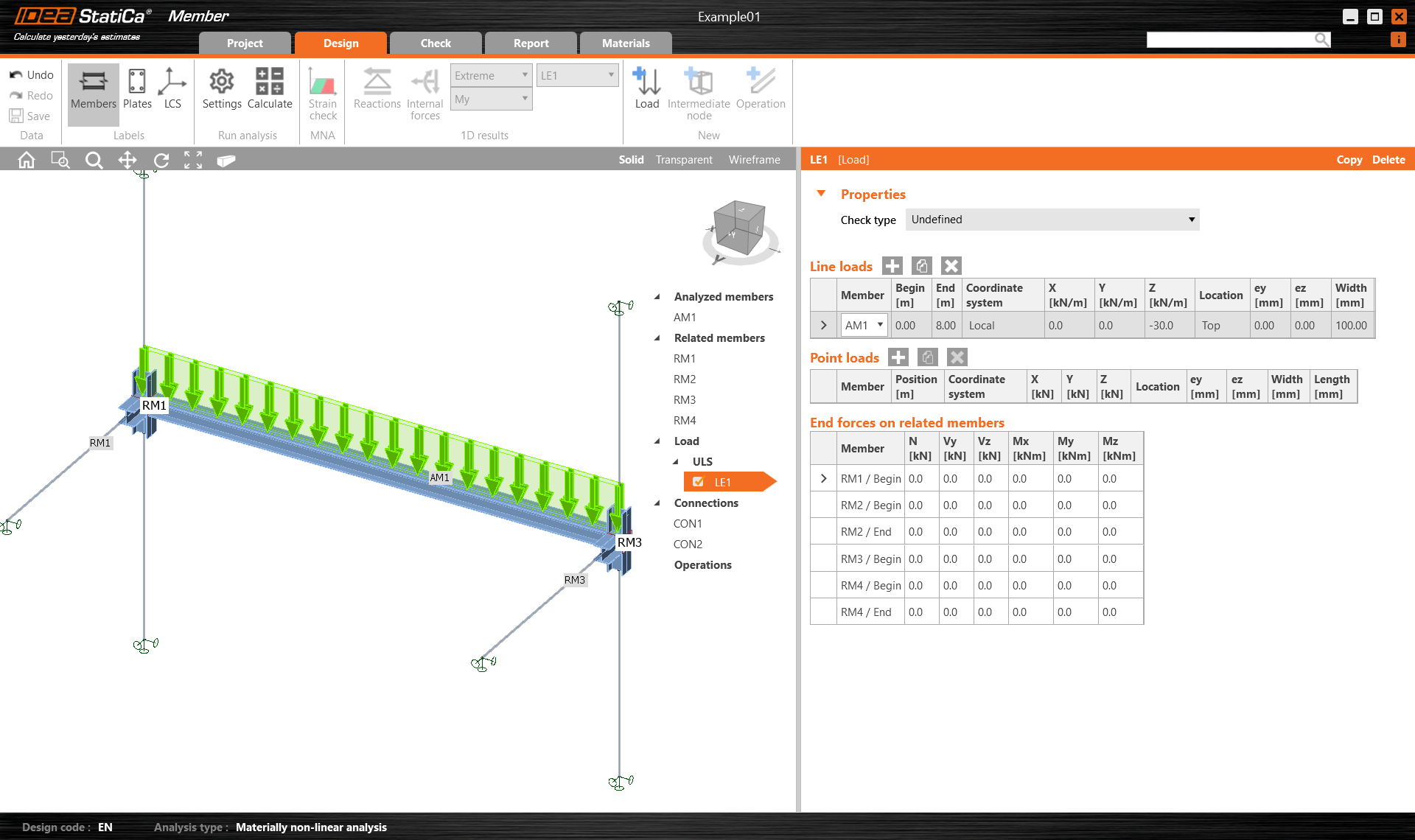

First, specify the dead load on the beam, where it is placed and the distribution area of the load.

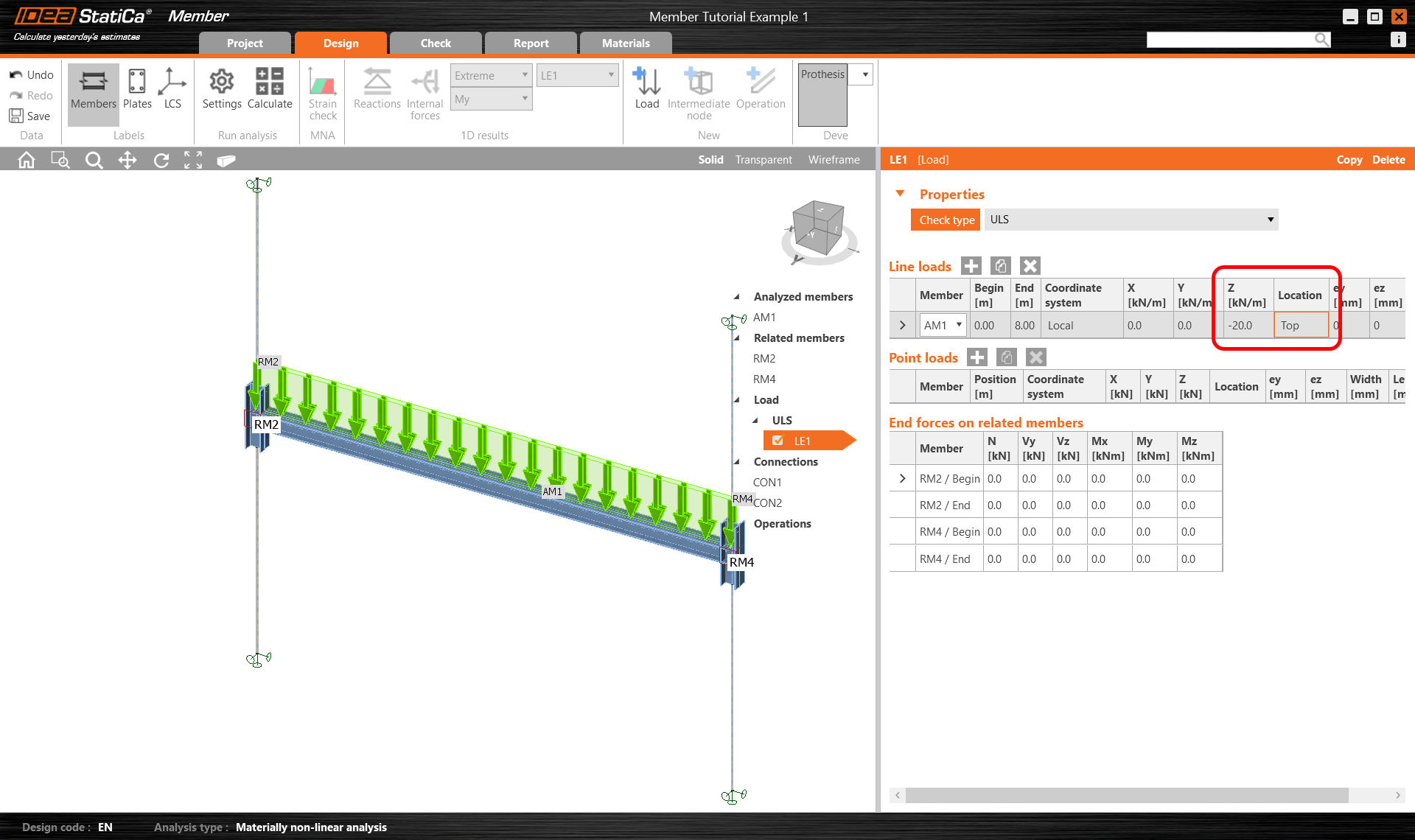

Set the Check type to ULS and enter -20 kN/m in the z direction acting on the top flange.

Connections

Click on Connection CON1 and then on Edit connection.

There two ways we can model this simple connection:

  1. Using an endplate operation
  2. Using an example from the connection library

As our example is very straightforward we will use option 1.

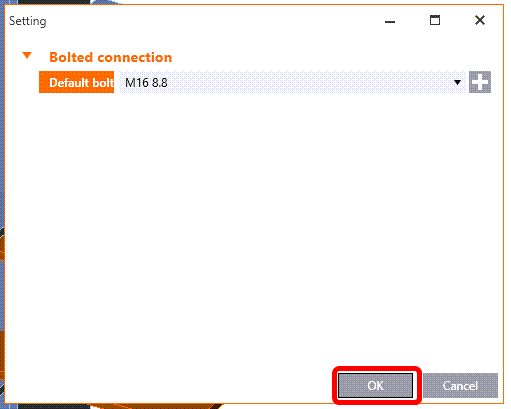

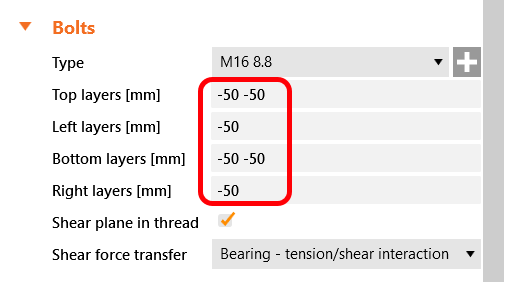

Change the dimensions of the bolt to M16 8.8, and click OK.

Amend the bolt spacing as shown below:

Save and Exit this connection.

To design the second supported joint, click on Connections CON2 and then Apply the recent connection CON1.

Check

Now you can start the Materially non-linear analysis. Select the Tab Check, MNA, and click Calculate.

You can visually check the stresses along with the member by clicking on the button Stress in the upper ribbon.

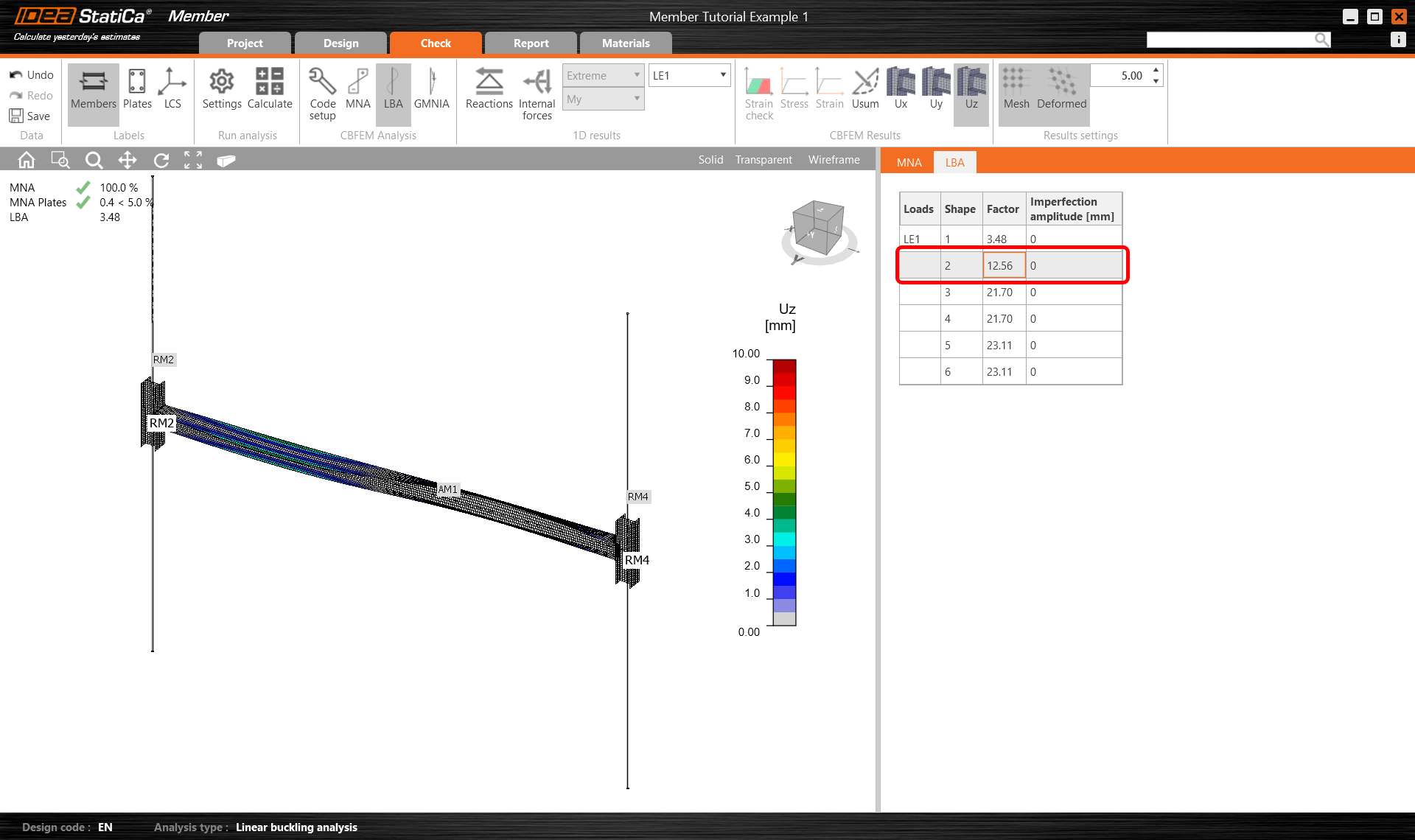

Linear buckling analysis can be done by selecting LBA and clicking Calculate.  You can investigate the mode shapes by clicking on a different line in the table.

As you see the first two factors are less than 15, so in this case, a Geometrically and materially nonlinear analysis with imperfections makes sense with accumulated initial amplitudes. For more information please see the article about imperfections or the Theoretical background.

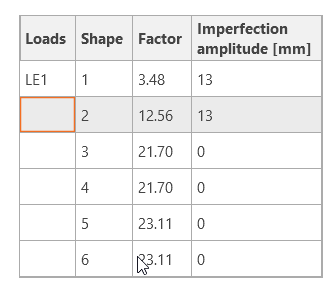

For the Geometrically and materially nonlinear analysis, you have to set the Amplitude (imperfection).

We enter the values 0,5 x l/300 = 8000 / 300 = 13 mm.

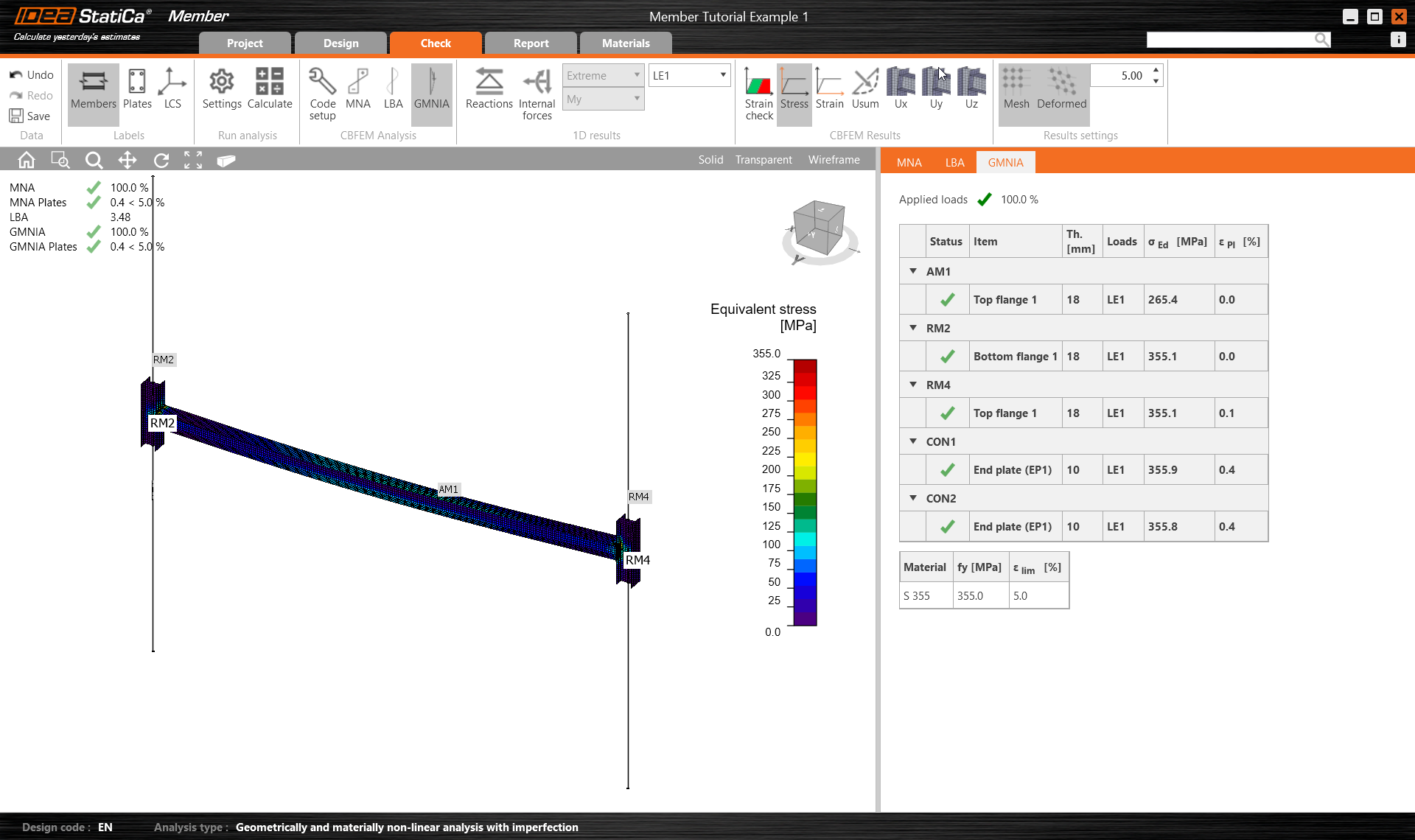

You can start the calculation by selecting GMNIA a click Calculate.

You can see in the results, that the dimension of the member is sufficient even with the geometrical imperfections.

Report

At last, go to the tab Report. IDEA StatiCa offers a fully customizable report to print out or save in an editable format.
