Splice connections of I-beam flanges (AISC)
In the attached verification example, a splice connection of I-beam flanges is being designed and investigated according to AISC 360-10.

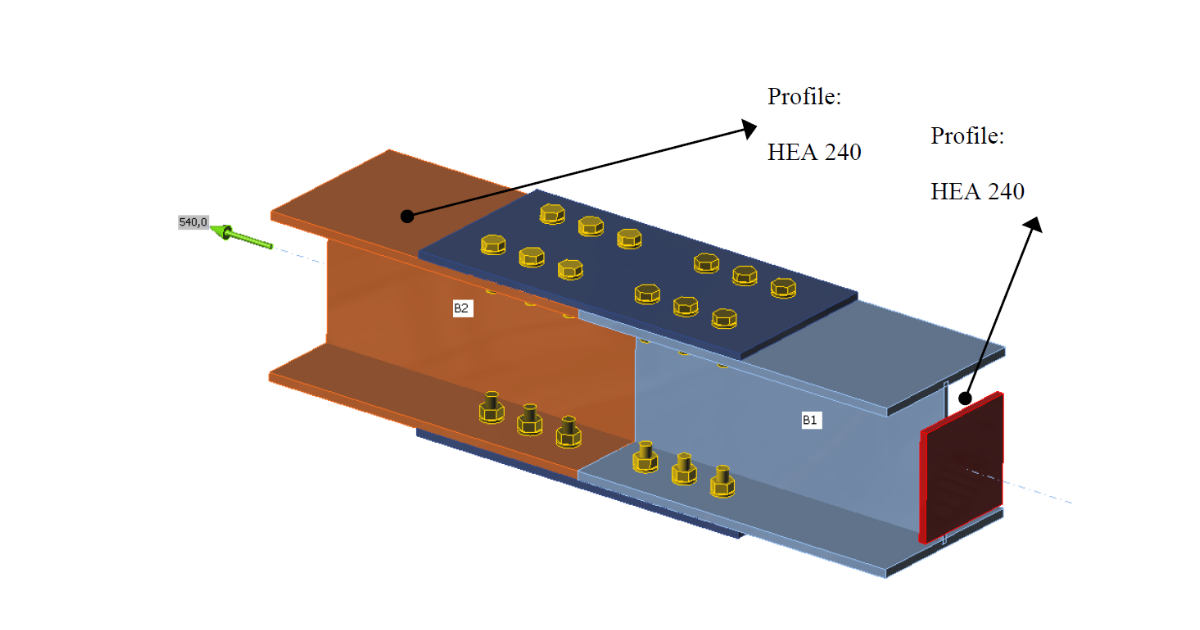

The I-beams are connected to each other by splices bolted upon beam flanges. The beams are loaded by tensile axial force. Bolt are loaded mainly in shear.
