Reduced Beam Section

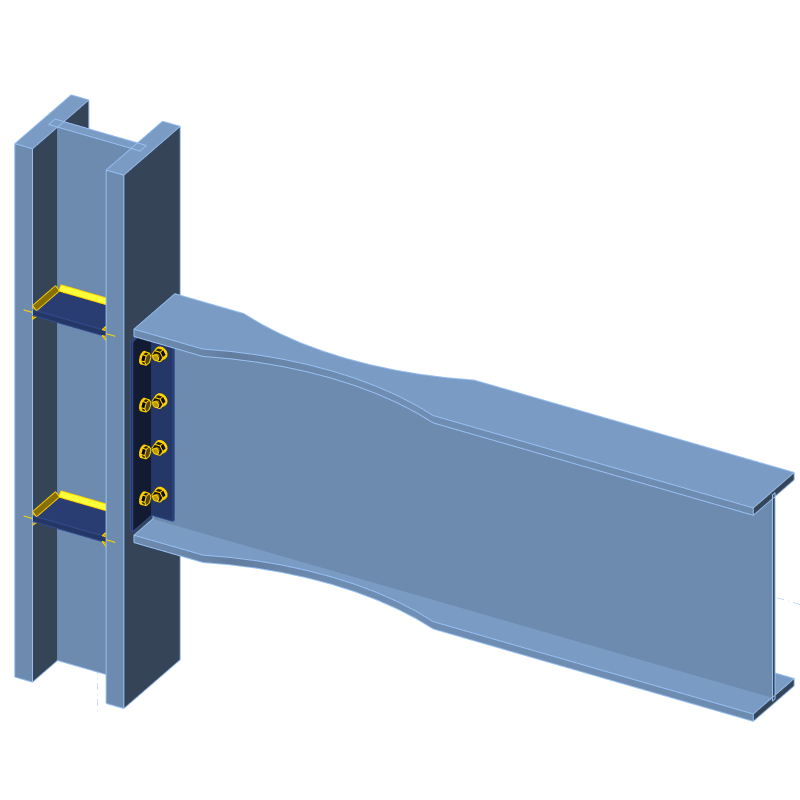

Bolted beam-to-column connection through the cleats. The beam provided with dog-bone reduced flanges for plastic hinge-controlled development. Suitable for use, for example, in structures located in seismic areas. Model of the connector created in IDEA StatiCa Connection app under AISC code.
