Haunch flange with openings

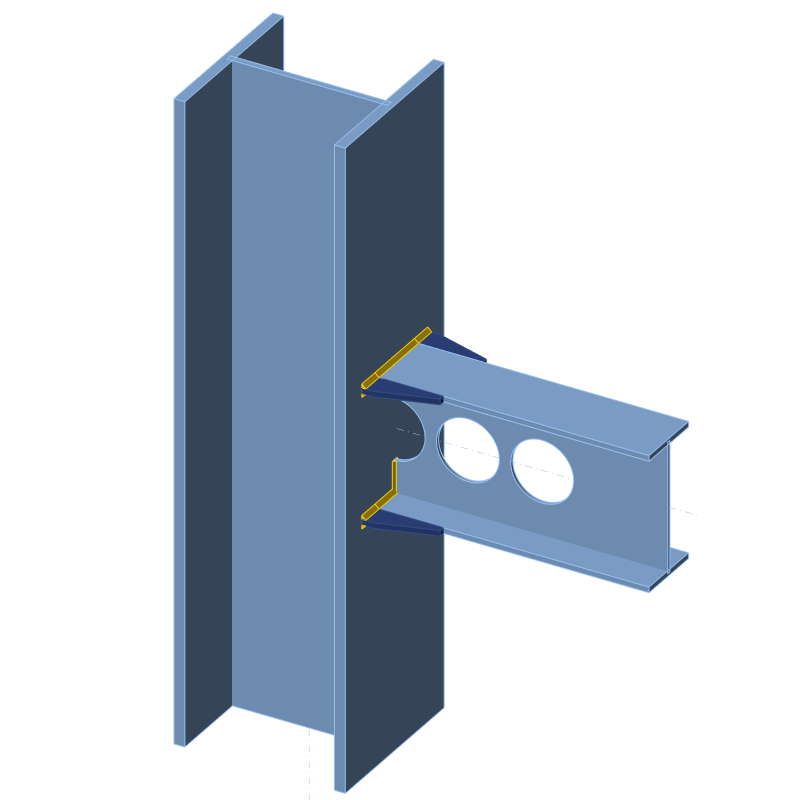

Simple moment connection analyzed in the IDEA StatiCa Connection app. A steel girder is welded to the column. The web of the girder is reduced by opening for duct and other services. Typical connection for industrial structures.
