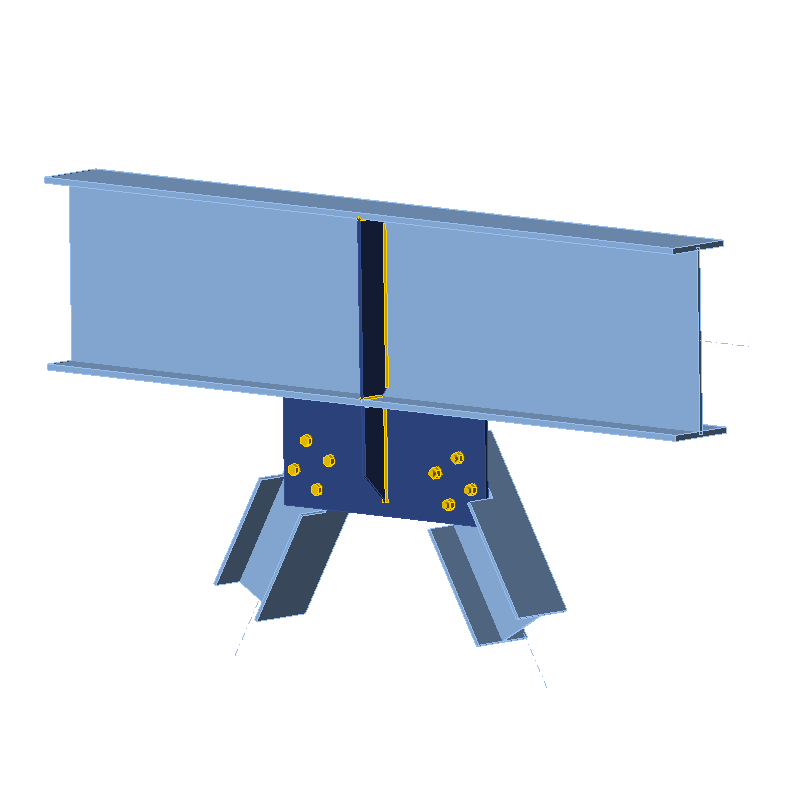

Gusset with cut HEA bracing
Truss connection with cut diagonal bracings connected to the horizontal rolled I-beam using gusset plate and bolts. The gusset plate is welded to the bottom flange of the horizontal beam. Stiffeners were used to strengthen the connection. Modeled and analyzed in the IDEA StatiCa Connection application.
