Double plate bracing

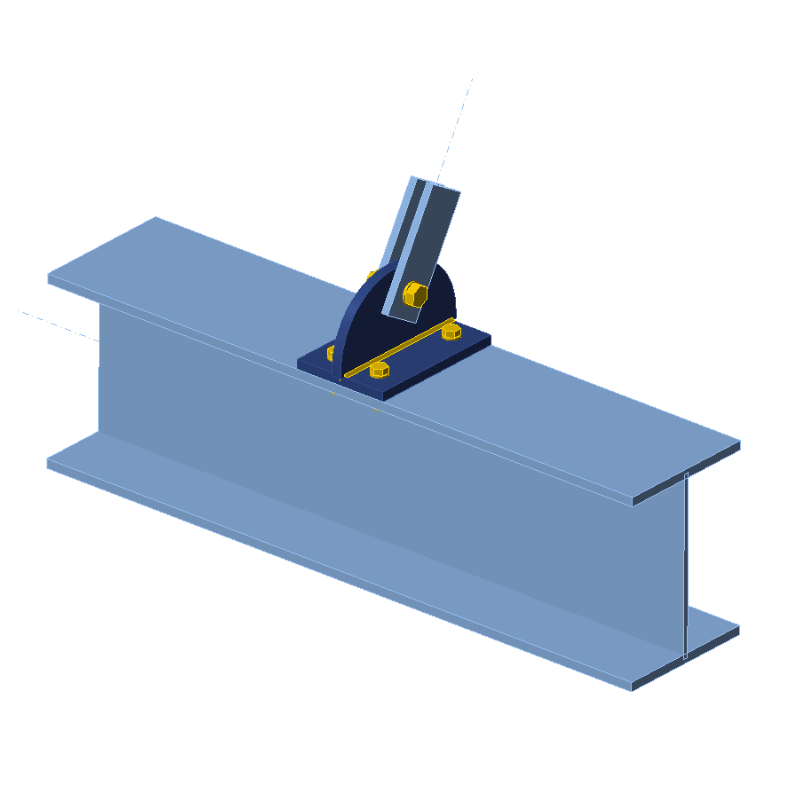

I section beam with bolted circular connecting plate for one bolted double angle bracing analyzed in the IDEA StatiCa Connection app. The connection is assembled to the top main beam flange with four bolts. The one-bolted arrangement provides free pitch angle for the bracing members.
