Beam with stiffener connected to column

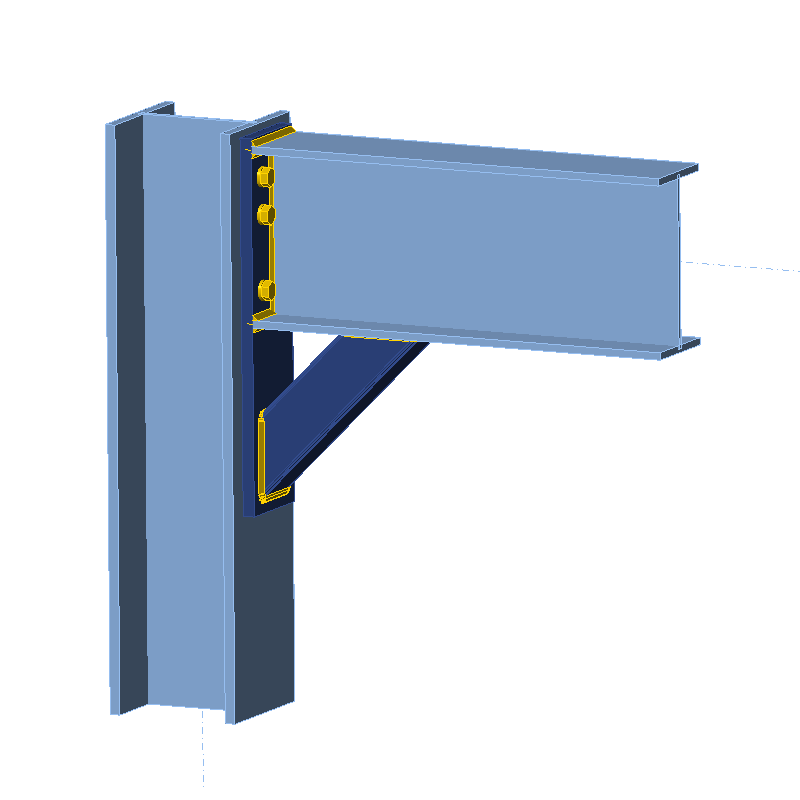

An example of a rigid connection with a rolled I-section beam connected to a column flange using bolted endplate, stiffened with welded hollow section HSS profile member. This atypical moment frame connection is analyzed in the IDEA StatiCa Connection app.
