Beam with shifted end plate

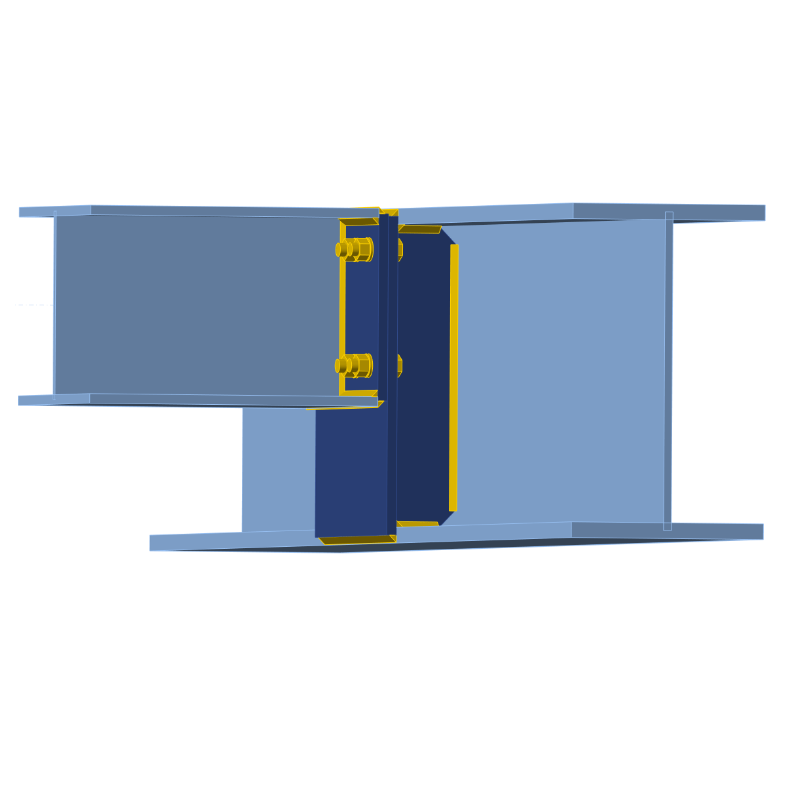

Rolled I-section beam connected via shifted end plate using bolts and stiffener, aligned to the top flange of the perpendicular bearing member. This joint can be typically found in residential or administration buildings as a connection of, e.g., floor beams. Modeled in the IDEA StatiCa Connection app.
