Base plate with stiffeners

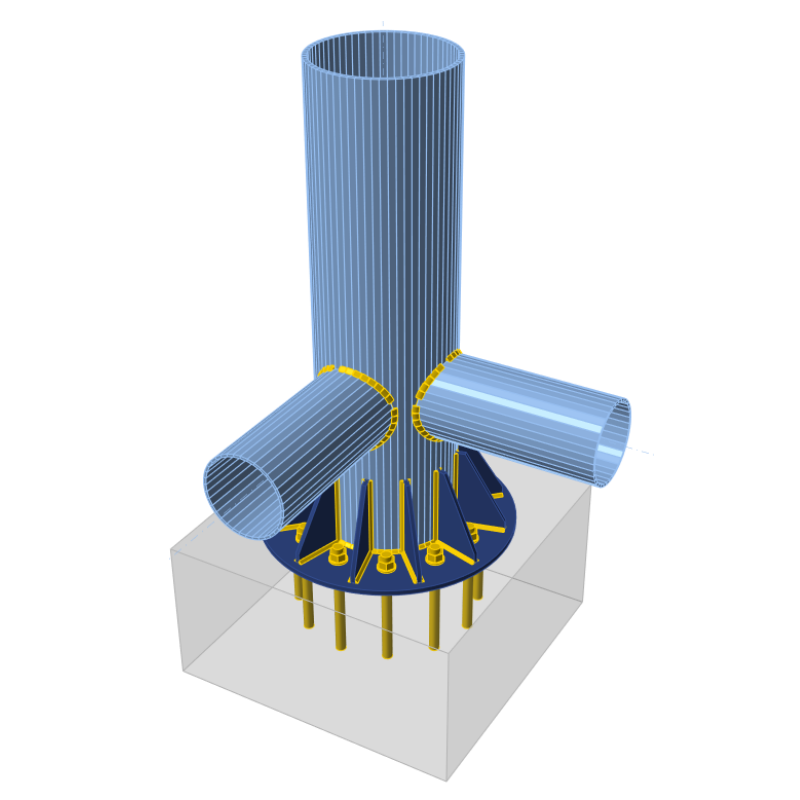

Circular shaped column base plate with stiffeners and welded horizontal tube members. Typical anchoring of the technological structure, e.g. truss tower. The stiffeners are providing rigid anchoring. This model is analyzed in the IDEA StatiCa Connection app with advantage of GMNA analysis.
