UNLIMITED CROSS-SECTION DESIGN

Design and check any type of concrete cross-section

CROSS-SECTIONS OF ANY COMPLEXITY

Get rid of your spreadsheets and boost your productivity and daily workflows. With IDEA StatiCa RCS, you can

  • Model and reinforce any type of concrete cross-section
  • Use staged, composite, pre- and post-tensioned sections
  • Have full control with detailed results
  • Receive all code-required ULS and SLS checks
  • Generate simplified and detailed reports
CHECK OUT SAMPLE REPORT
*CROSS-SECTIONS* OF ANY COMPLEXITY

WHAT TYPES OF CROSS-SECTION CAN I CHECK?

There are no limits. Confidently check any type of concrete cross-section, no matter its complexity.
Reinforced concrete sections
Reinforced concrete sections
Prestressed cross-sections
Prestressed cross-sections
Composite and staged sections
Composite and staged sections
2D elements - slabs, walls and shells
2D elements - slabs, walls and shells
General shape of cross-section
General shape of cross-section

DESIGN CROSS-SECTIONS, ANALYZE, AND REPORT

Model
Load
Calculate
Report

WHAT'S IN THE REPORT?

You will get all ULS and SLS checks required by your selected code. IDEA StatiCa RCS includes Eurocode and many other national annexes.
Capacity N-M-M
Capacity N-M-M
Shear check
Shear check
Torsion
Torsion
Interaction
Interaction
Stress limitation
Stress limitation
Crack width check
Crack width check

HOW DOES IT WORK?

Quick way to get the report.

1 - Define cross-section

  • Use templates
  • Import shape from DXF
  • Create own template

2 - Apply loads

  • Apply all internal forces
  • Import forces from Excel
  • Load model from your FEA

3 - Specify reinforcement

  • Use smart templates for common cross-sections
  • Edit or add any other rebar or tendon
  • Create your own templates

4 - Get results

  • Quickly perform overall checks
  • Go through them
  • Generate the report
  • Export the reinforced section to DXF
TRY IDEA STATICA FOR FREE
  • Experience all features, the User Portal, and workflows
  • Receive support from our product engineers
  • Learn through training and free tutorials
TRY 14 DAYS FOR FREE WANT TO GET CERTIFIED?

Concrete case studies

The Arch Railway Bridge
Jetetice | Czech Republic
The reinforced concrete arch railway bridge was designed to cross over the Orlik water dam on the Vltava River. This recent project of SUDOP PRAHA is remarkable not only for the complexity of construction typical of these kinds of bridges but also because its span of 156 m makes it the longest of its kind in the Czech Republic. The elegant structure will, thus, become an iconic feature for the entire valley.

Designing a structure of this large scale entailed several typical challenges. These were solved by multiple tools, and IDEA StatiCa BIM and IDEA StatiCa RCS also played a significant role.
Prestressed highway concrete bridge
Prague | Czech Republic
A new 12.2km long section of the motorway is being constructed on the outskirts of Prague that will connect the D0 ring road (one of the most significant transport structures in the Czech Republic) with the D10 and D11 motorways, as well as many other major roads connecting the capital to its surrounding areas.
A bridge was required at the second-most-important crossroads of this section of the ring road. Therefore, the expertise of Structural Engineer Jan Lamparsky of AFRY CZ was enlisted to ensure it would be delivered successfully.
Reinforced concrete structure of a multifunctional building
Brno | Czech Republic
A new multifunctional building with twelve above-ground and three underground floors is being constructed in the city of Brno, Czech Republic. Engineers from STATIKON Solutions s.r.o. have taken on several challenges with this project and agreed to share some exciting details about it.
Prestressed concrete roof, Zbysov, Czech Republic
Zbysov | Czech Republic
Companies Trenon and Bestr carried out an interesting construction project in Zbysov, a small town not far from Brno, Czech Republic. They have designed a prestressed waffle slab structure into the false formwork of polystyrene blocks.
Curved shear wall design
United Kingdom
In this article, we are presenting a case study of IDEA StatiCa RCS through a real project from one of our customers, which although relatively small-scaled, presents the designer with several challenges that make the calculation of internal forces complex, with the biggest one being the curved concrete walls.
Retrofit of a reinforced concrete arch bridge, Czech Republic
Krinec | Czech Republic

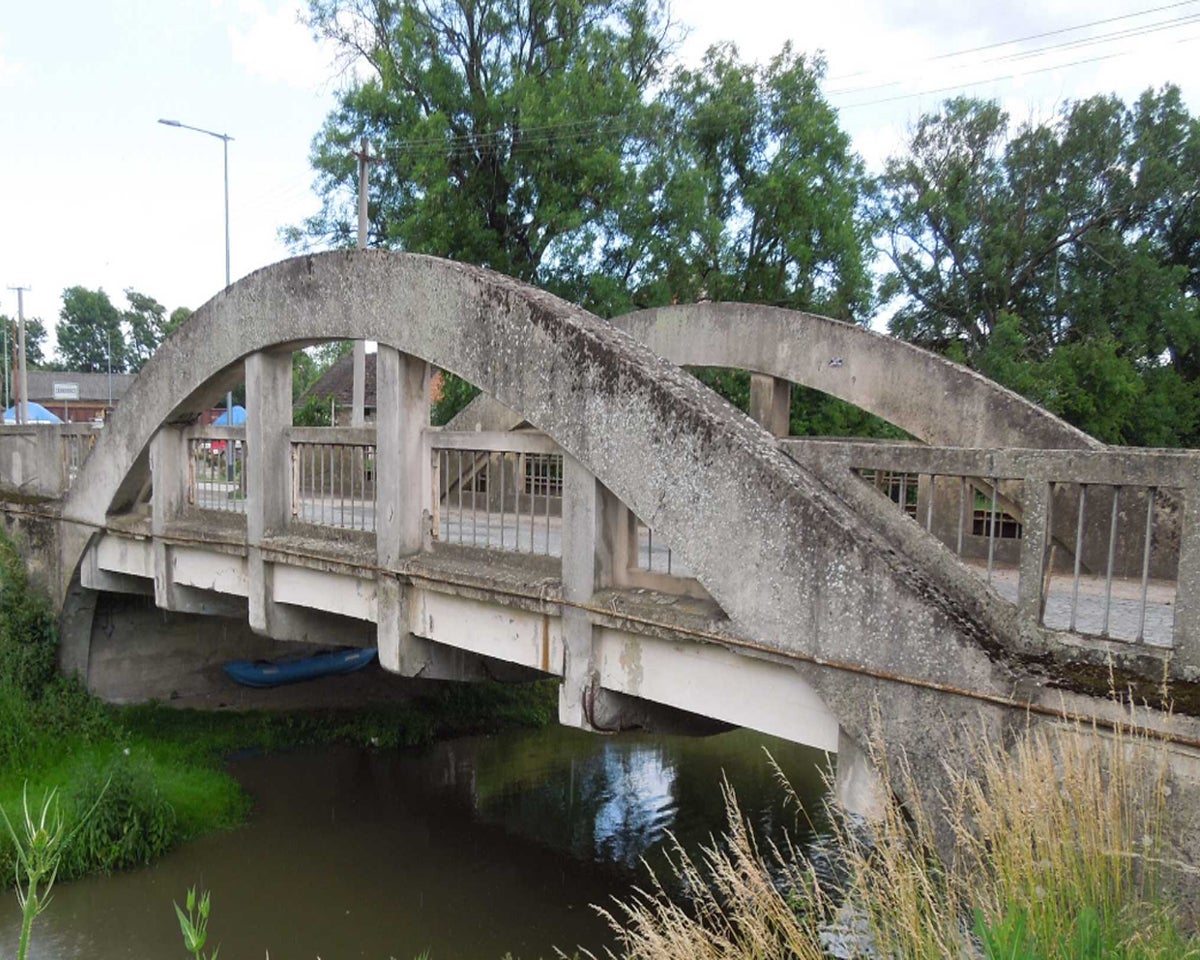

This study showcases an analysis of an old reinforced concrete road bridge which consists of two concrete arches and suspended concrete bottom deck. It spans over the Mrlina river in Krinec, Czech Republic.
